EFFORTLESS EXPLOSIVE DYNAMIC RESPONSE
High-end perfection, built by DALI

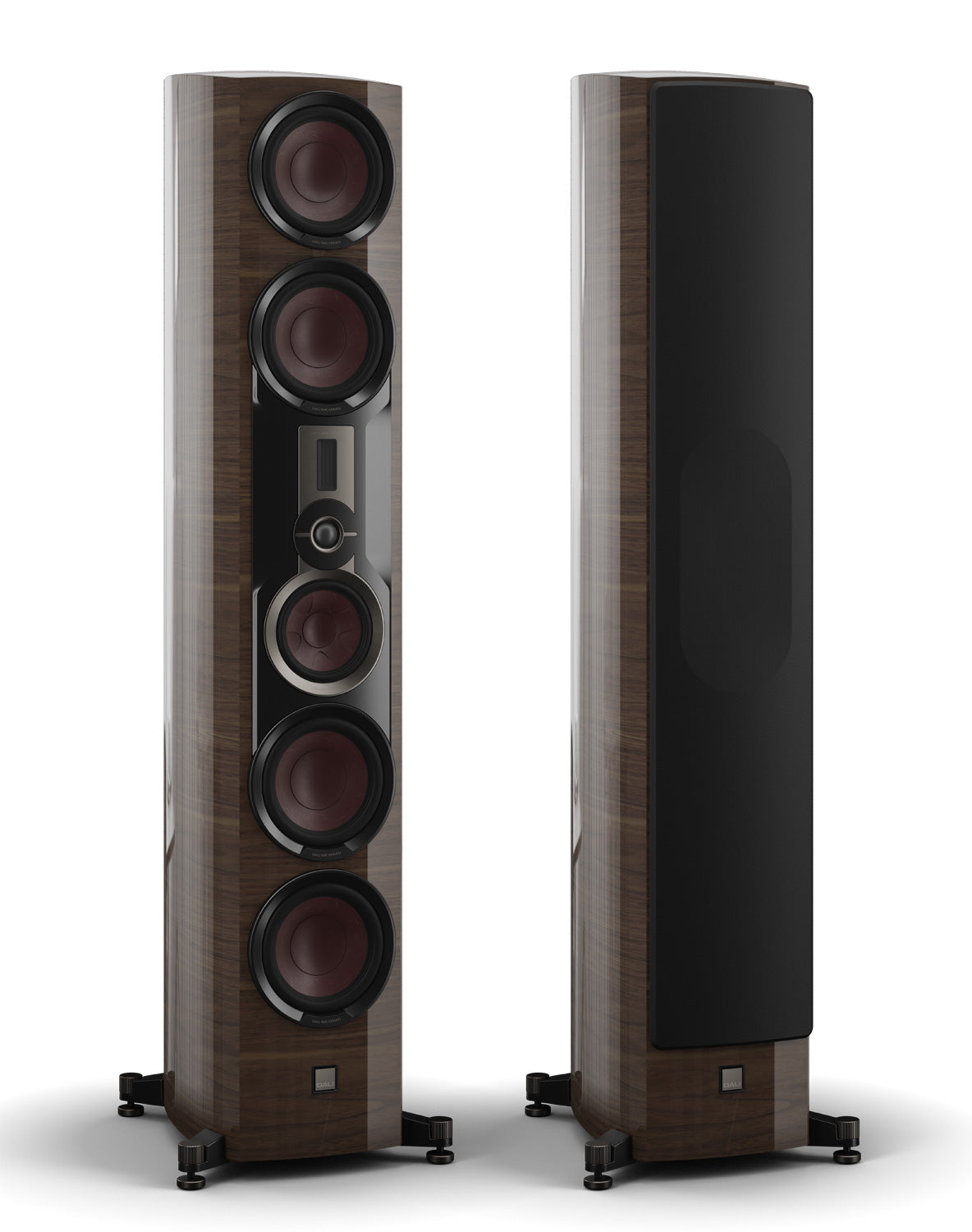

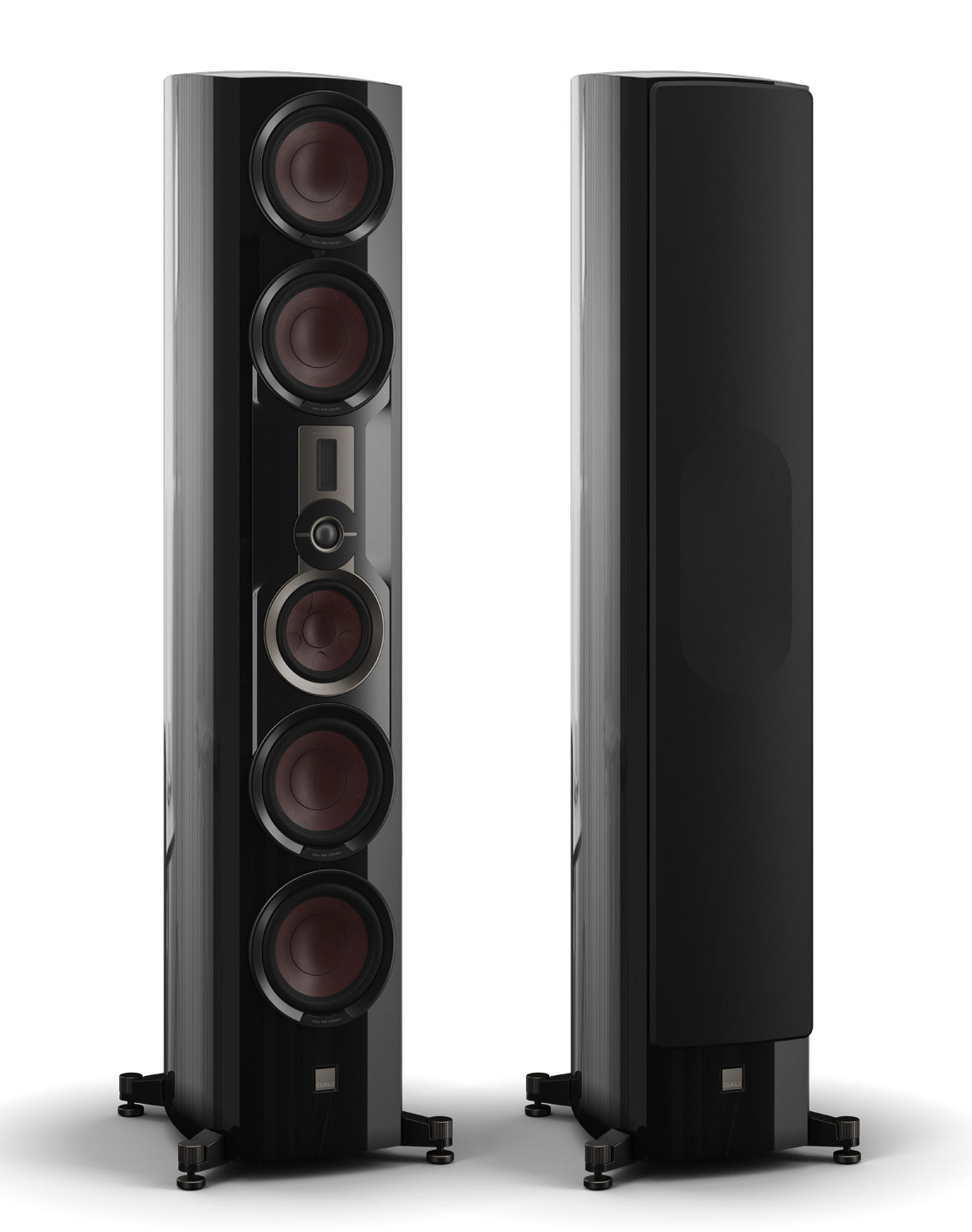

The EPIKORE 11 is a 4½-way floorstander featuring no less than four 8 inch woofers, a newly developed 6½ inch midrange, and the advanced EVO-K Hybrid Tweeter, all housed in a completely inert and luxurious enclosure built by DALI in Denmark. The EPIKORE 11 incorporates low-loss technology to deliver effortless explosive dynamic response - from the subtlest of micro details to the grand scale of a live concert.
ELEGANT LUXURY CABINET
A perfect low-resonance environment

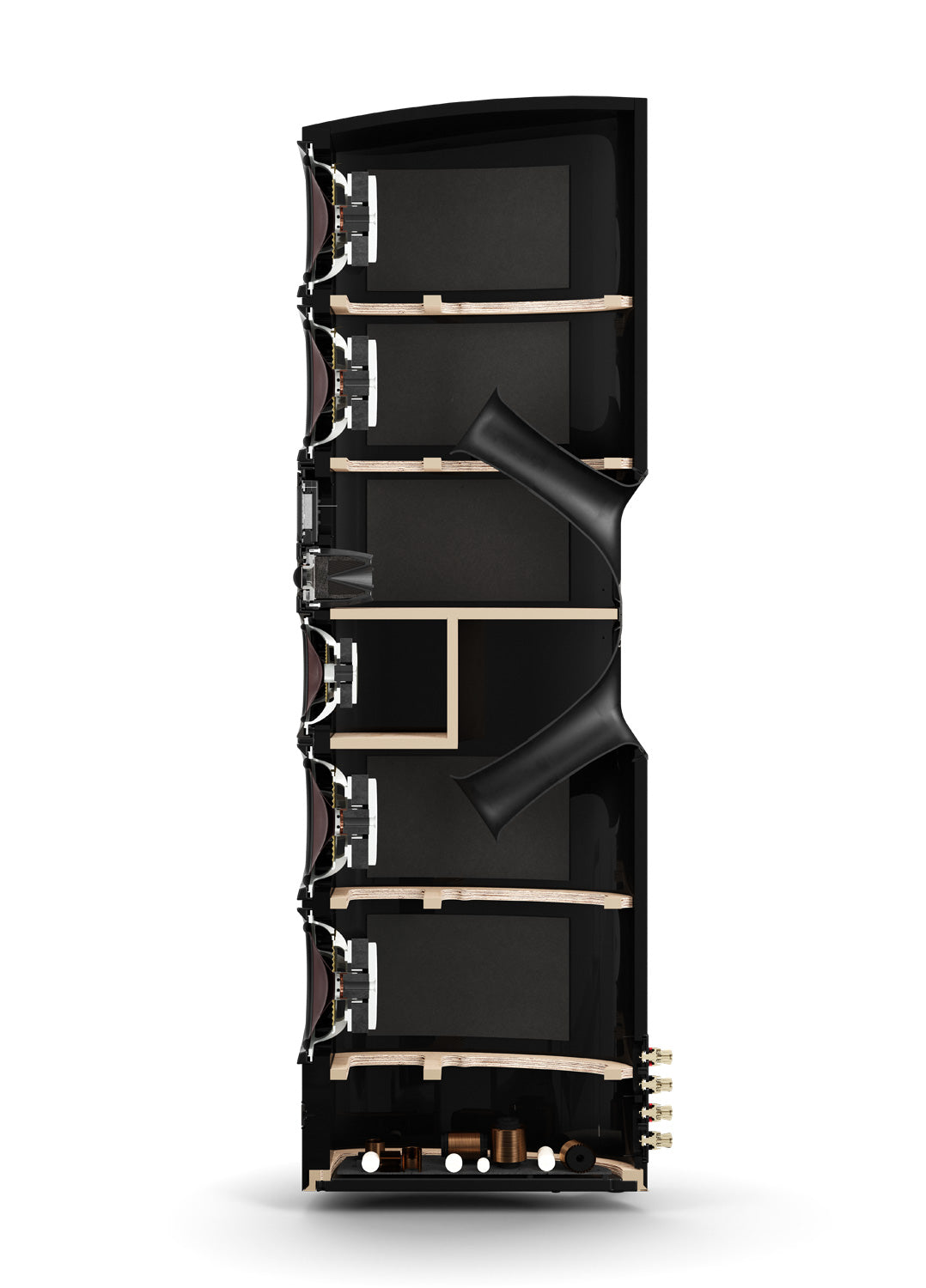

The tall, luxurious form of the EPIKORE 11 with laminated real wood veneer and luxurious piano-finish lacquering is a masterpiece of construction. The completely inert and stiff structure also creates the perfect low-resonance environment for an astoundingly authentic musical reproduction.
ULTRA-LOW DISTORTION
SMC Gen-2 technology
Introduced in the flagship DALI KORE loudspeaker, SMC Gen-2 is the latest generation of the patented DALI magnet material technology, providing astonishingly low levels of loss and distortion for a highly dynamic and authentic sound reproduction. SMC Gen-2 is incorporated into the EPIKORE bass and midrange drivers, as well as in the crossover inductor cores.
PAPER & WOOD FIBRE CONES
Producing the finest musical details
The EPIKORE 11 includes the DALI signature paper and wood fibre cone technology, which reduces weight and adds stiffness to help promote non-resonant break-up characteristics. With wood fibre cone technology, the EPIKORE 11 produces the finest musical details and dynamics.
A SOLID FOUNDATION
A substantial speaker from the ground up
Weighing more than 34 kg, the DALI KORE's precision-cast resin composite plinth provides a substantial and rigid base for the speaker's 160 kg total weight. The non-magnetic housing also shields the drivers from the large crossover components and isolates the crossover from unwanted vibration and air pressure.
CRYSTAL-CLEAR HIGHS
EVO-K Hybrid Tweeter
Developed originally for the DALI KORE, this advanced tweeter unit combines a large, in-house-developed soft dome tweeter and an improved version of the high-performance, wide-dispersion planar tweeter element. Together with extremely powerful neodymium magnet motor systems, they deliver a crystal clear, high-frequency reproduction at any volume.
Technical data
| Model | EPICORE 11 |
|---|---|
| Frequency range (+/- 3 dB) [Hz] | 29 - 34,000 |
| Sensitivity (2.83V/1m) [dB] | 89.0 |
| Nominal impedance [O] | 4 |
| Maximum sound pressure level [dB] | 116 |
| Recommended amplifier power [W] | 40 - 1,000 |
| Transition frequencies [Hz] | 170 / 370 / 3,100 / 12,500 |
| Crossover principle | 4½-way |
| Hybrid tweeter module, super tweeter, number | 1 x 10 x 55 mm |
| Hybrid tweeter module, super tweeter, type of membrane | Ribbon |
| Hybrid tweeter module, tweeters, number | 1 x 35mm |
| Hybrid tweeter module, tweeter, type of membrane | Tissue dome |
| Midrange, quantity | 1 x 6½" |
| Midrange driver, diaphragm type | Wood fiber membrane |
| Low-midrange speakers / number | 4 x 8" |
| Low-midrange driver, type of membrane | Wood fiber membrane |
| Housing type | Bass reflex |
| Bass reflex tuning frequency [Hz] | 24.0 |
| Inputs | Bi-Wiring |
| Magnetic shielding | No |
| Recommended placement | Standbox |
| Recommended wall distance [cm] | 35 - 120 |
| Housing dimensions (HxWxD) [mm] | 1602 x 422 x 554 |
| Accessories included | Instruction manual Inserts Microfiber cloth Spike boom Magnetic spikes Terminal bridges Floor-friendly underlays 5 mm Allen key ssel Magnetic Cover |
| Weight [kg] | 75.6 |
