Dali Loudspeaker for use as Surround or Stereo Configuration

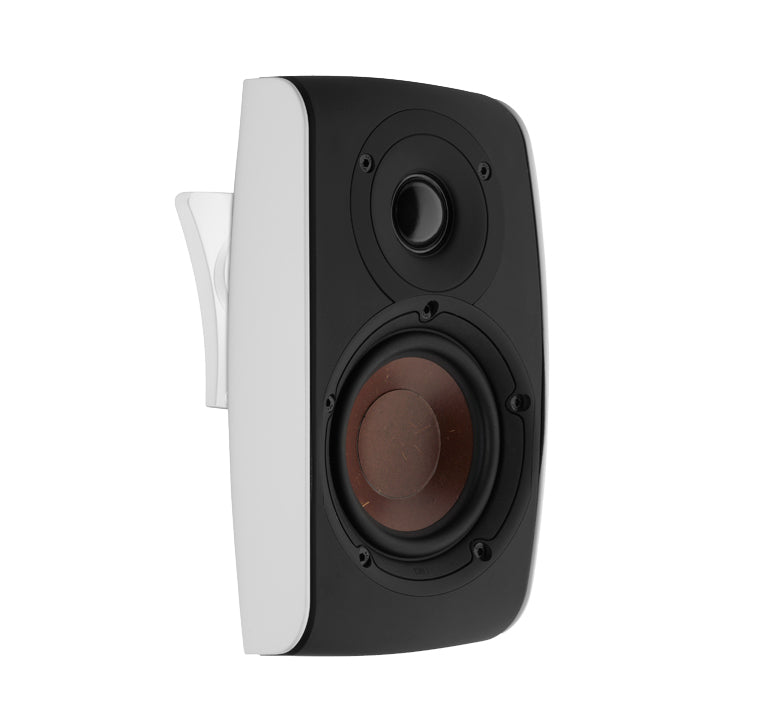

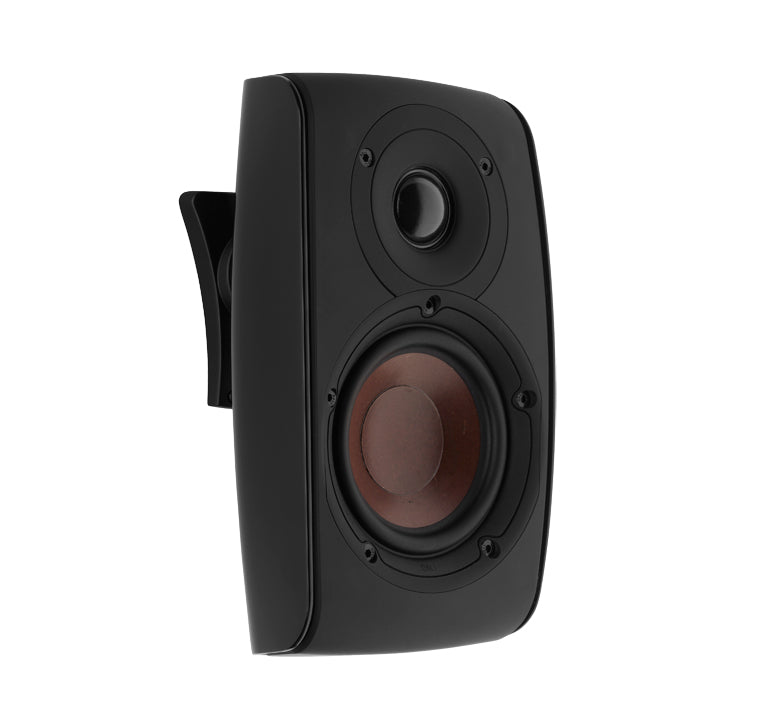

FAZON SAT is a two-way designed satellite speaker including a 4½” mid/woofer with wood fibre cone and an oversized 28mm/1.1” soft dome tweeter with a powerful neodymium magnet system. The drivers share the same technology platform as the drivers developed for the acclaimed MENTOR and IKON series.

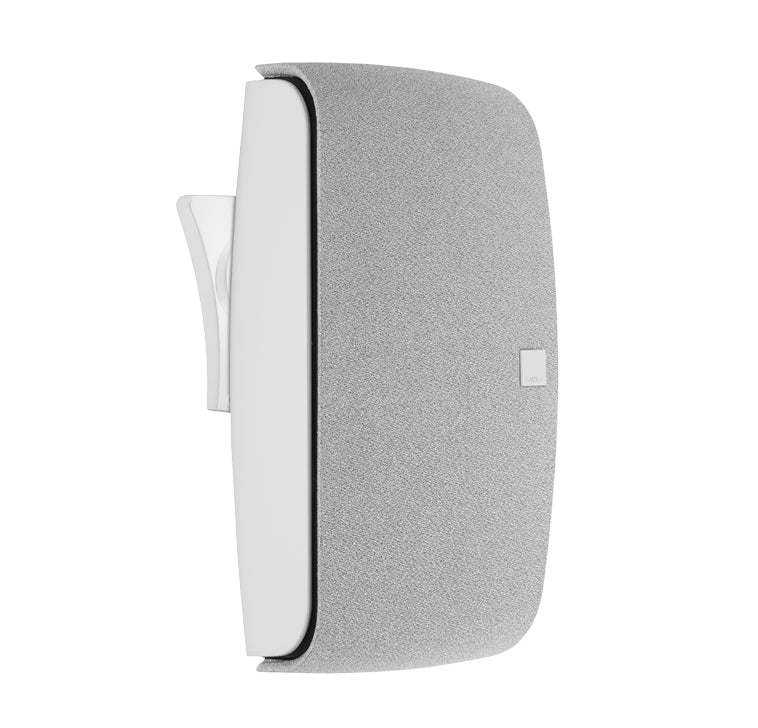

Equipped with a 360º pivoting wall bracket, FAZON SAT offers a flexible and innovative “Twist ‘n‘ Tilt” function. You can angle the speaker precisely horizontally and vertically; tilt it up or down, swivel it to either side and even mount it upside down.

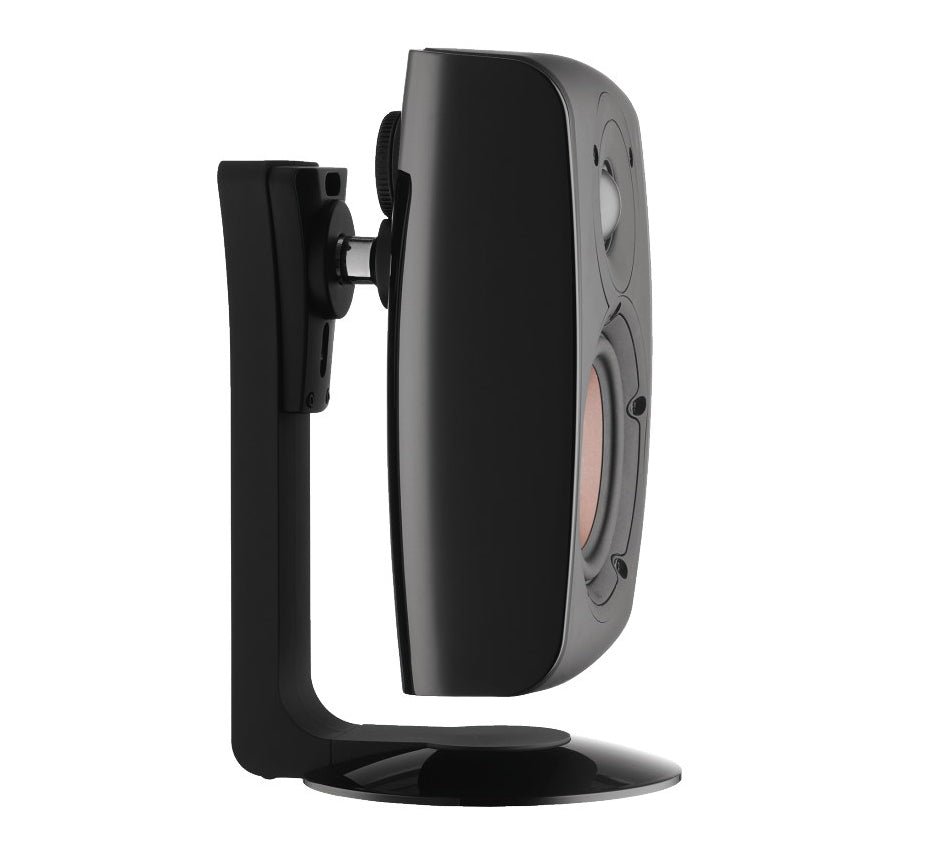

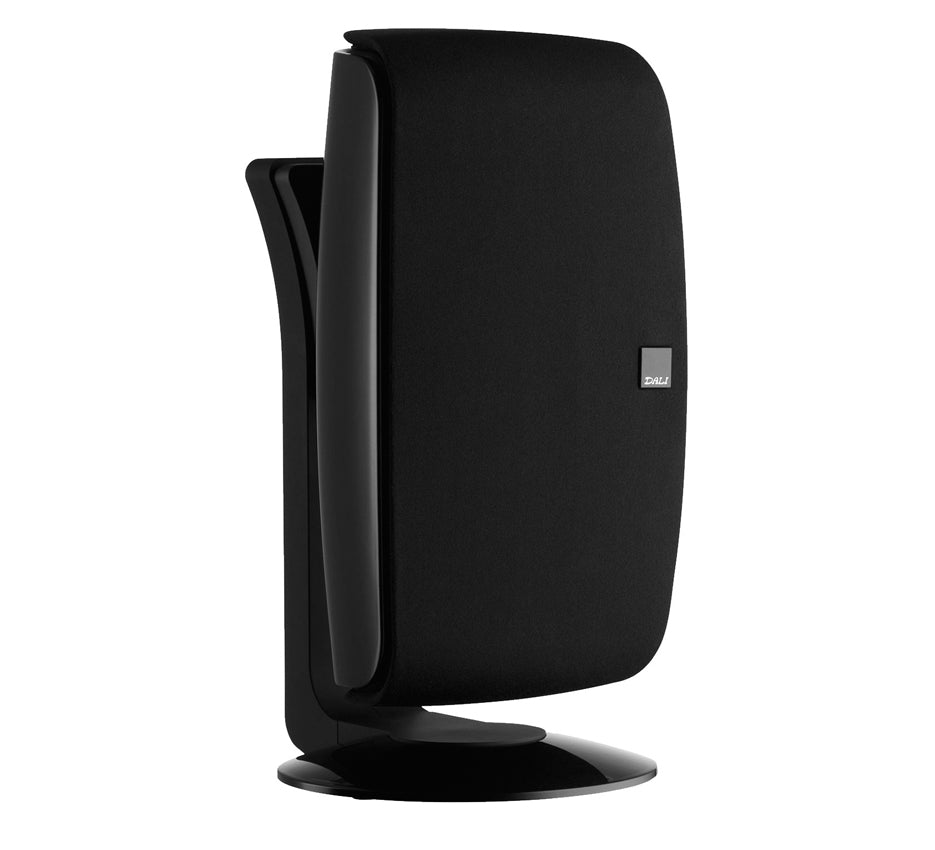

The speakers are delivered with a handy table stand for easy placement on a TV table, bookshelf, etc. The elegant and curved cabinet body is a combination of high gloss lacquered aluminium and composite material for the baffle. The surface of the baffle is treated with a rubbery coating for a smooth, elegant touch. The grille, which conceals and protects the drivers and the baffle, is held in place with magnets - allowing quick, easy removal with no visible signs of mounting pegs on the grille. Simple and stylish satellite speakers.
FAZON SAT 5.1-3
Awarded the highly acclaimed ‘Best Style Package for 2011’ by What HiFi, these compact DALI speakers will not let you down. An aesthetically pleasing set-up consisting of 5 identical speakers, assisted by the SUB E-12 F. The FAZON SAT pleases eyes and ears alike.
Technical data
| Product Series | FAZON |
| Speaker Type | Center Front Rear Surround |
| Frequency Range (+/-3 dB) [Hz] | 86 - 25,000 |
| Sensitivity (2,83 V/1 m) [dB] | 86.0 |
| Nominal Impedance [?] | 6 |
| Maximum SPL [dB] | 104 |
| Recommended Amplifier Power [W] | 20 - 120 |
| Crossover Frequency [Hz] | 1,800 Hz |
| High Frequency Driver | 1 x 28 mm Soft Textile Dome |
| Low Frequency Driver | 1 x 4.5" Wood Fibre Cone |
| Enclosure Type | Closed Box |
| Connection input(s) | Single Wire |
| Magnetic Shielding | No |
| Recommended Placement | Above/Below TV Screen On-Wall Shelf Stand |
| Dimensions With Base (HxWxD) [mm] | 255.5 x 138 x 87 / W. Table Stand: 287 x 146 x 172 |
| Weight [kg] | 2.4 |
| Accessories Included | Assembly Tools Manual Table Stand Wall Bracket |
| Finish | Black Lacquer White Lacquer |
