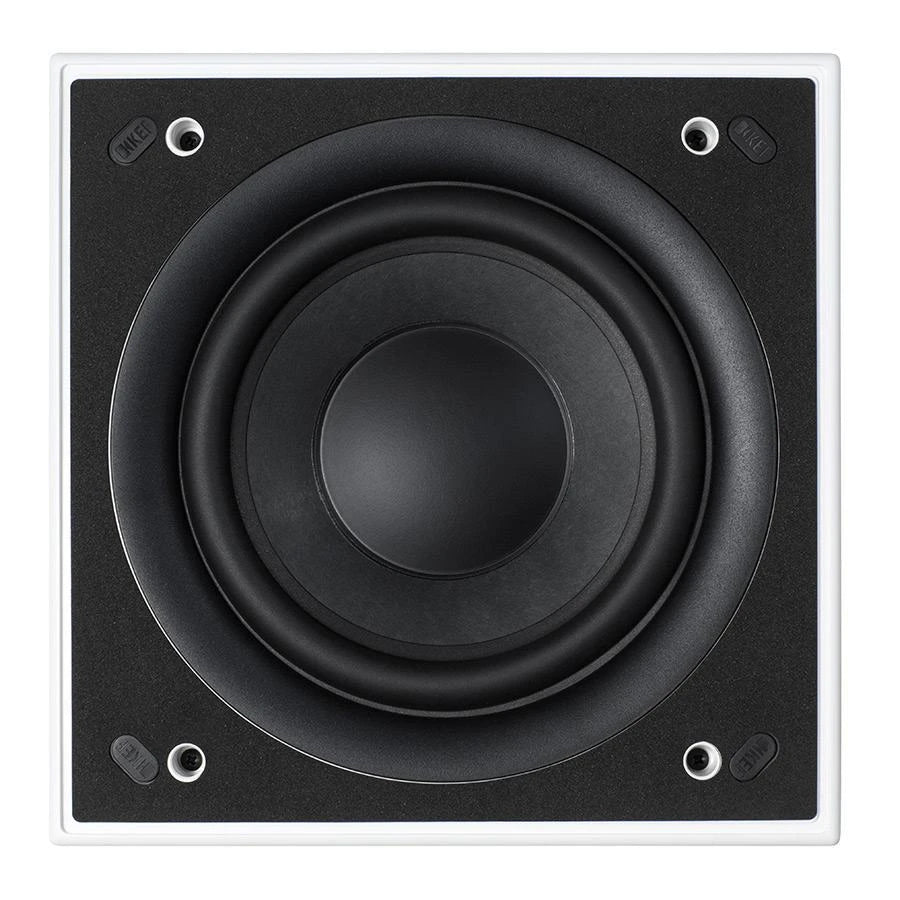

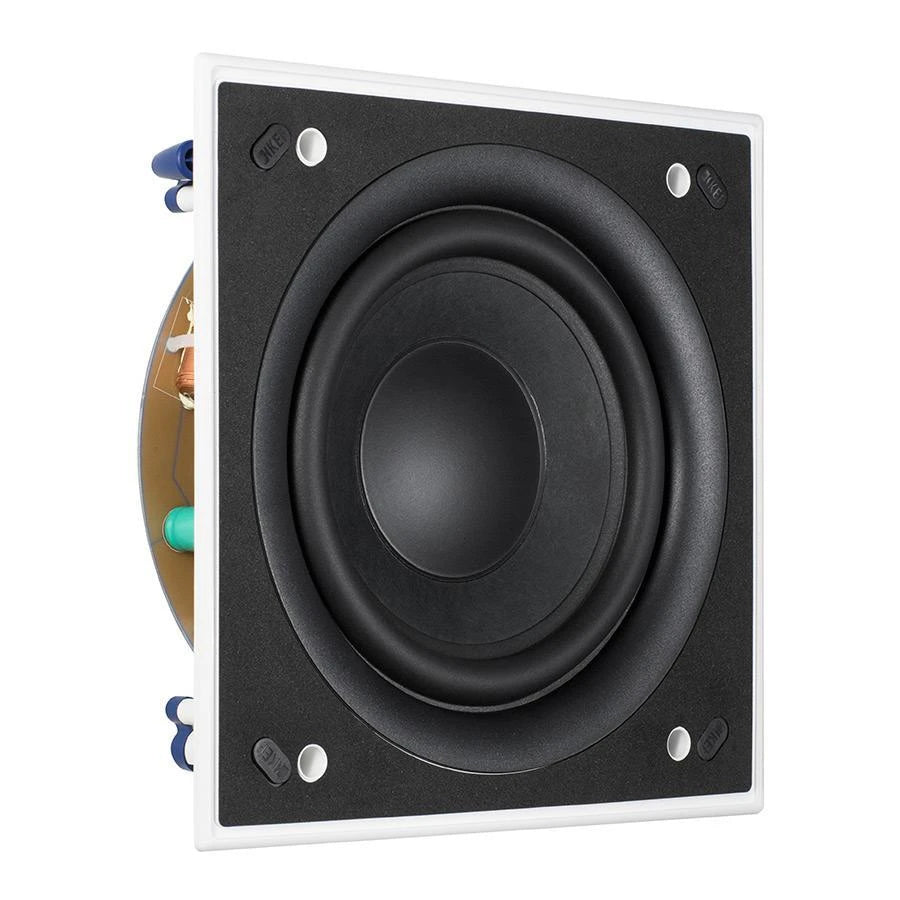

Ci200QSb-THX
The Ci200QSb-THX in-wall subwoofer is certified to THX ULTRA2 and THX SELECT2 standards and delivers superb sound quality with deep bass, astounding drama, and the emotional and sonic intensity of a cinema installation.
With its powerful 200 mm (8") bass driver, the Ci200QSb-THX can be used in passive mode as a low-frequency extension in combination with other KEF Ci-series in-wall speakers. When used in active mode and correctly configured with the powerful 2 x 250 W KEF KASA500 system amplifier, the Ci200QSb-THX operates according to THX SELECT2 or THX ULTRA2 certification.
- THX Certified Ultra2 / Select2
- 200mm (8") driver with extended bass response

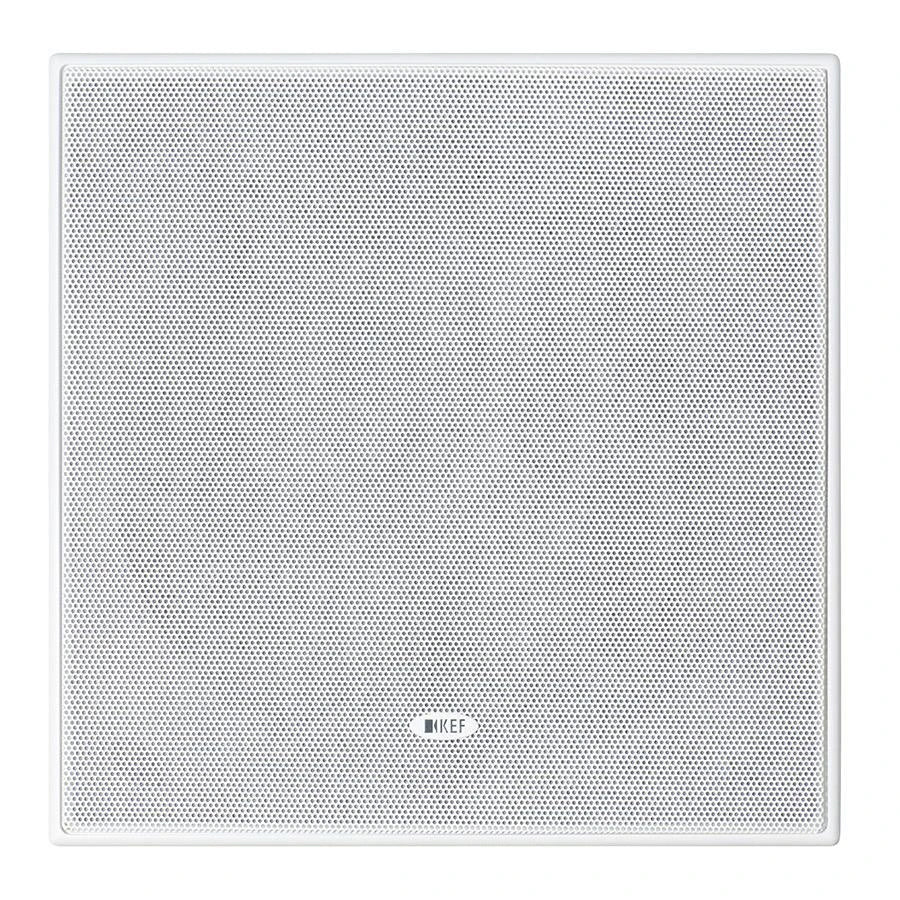

- Integrates subtly into any decor with a paintable, ultra-thin bezel (UTB) and magnetic grille

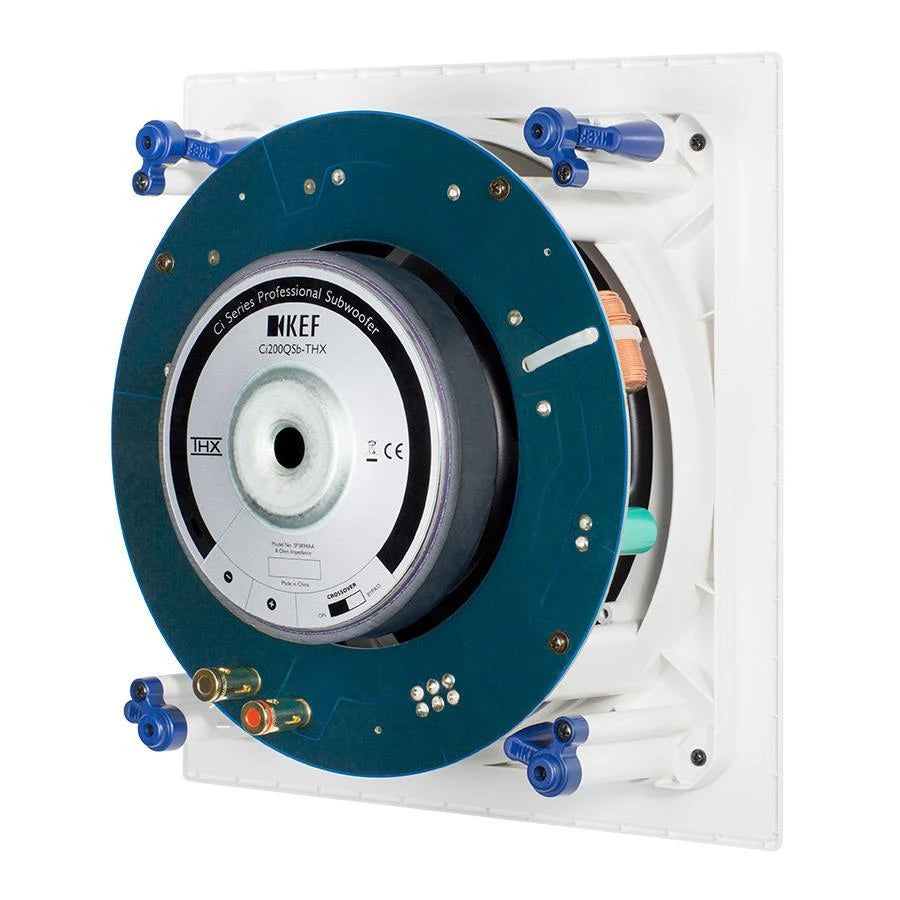

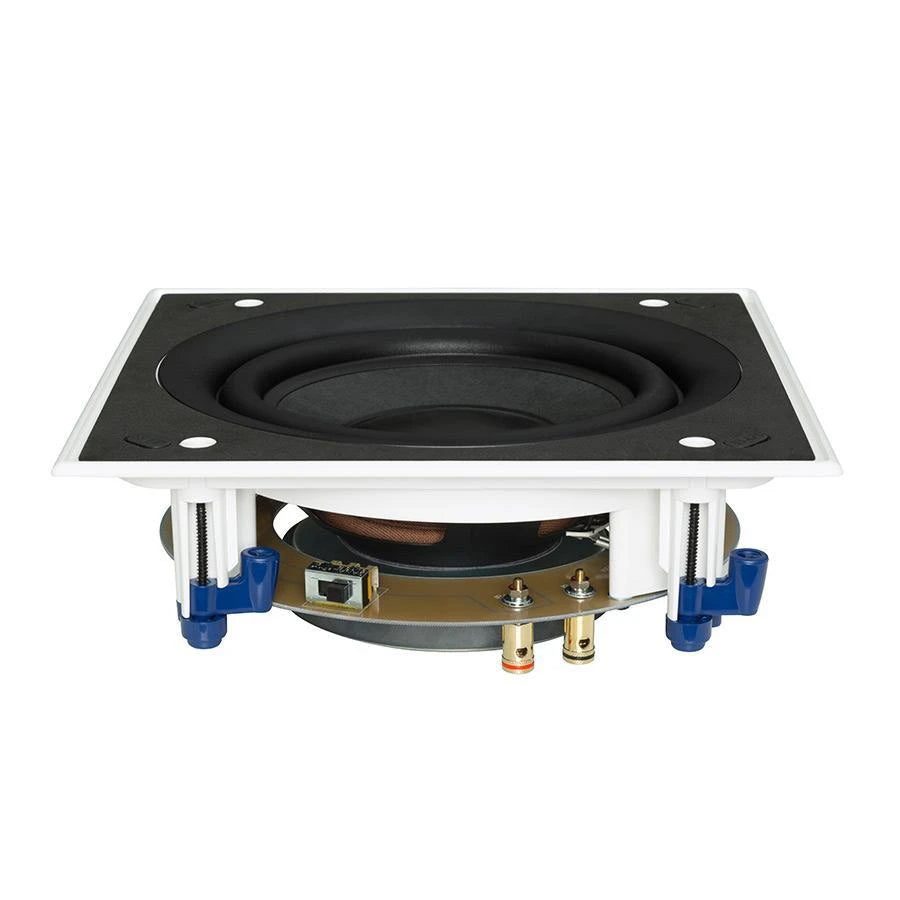

- Fast, versatile installation in almost any surface with the help of a special mounting bracket
- Can be used as a passive speaker with the integrated crossover or in active mode in conjunction with the THX certified KEF KASA500 system amplifier
- Only available in pairs
Technical data
| DEVICE | KEF Ci200QSb-THX |
|---|---|
| NOMINAL IMPEDANCE | 6 Ohm - Passive Mode (Crossover "ON") N/A - Active Mode (KASA500) |
| SENSITIVITY | 85dB - Passive Mode (Crossover "ON") N/A - Active Mode (KASA500) |
| CROSSOVER FREQUENCIES | 100Hz - Passive Mode (Crossover "ON") N/A - Active Mode (KASA500) |
| FREQUENCY RESPONSE | 40Hz-100Hz - Passive Mode (Crossover "ON") 18Hz-140Hz - Active Mode (KASA500) |
| DRIVE UNITS | LF: 200mm (8 in.) |
| RECOMMENDED AMPLIFIER POWER | 10-150W - Passive Mode (Crossover "ON") KASA500 - Active Mode (KASA500) |
| PRODUCT EXTERNAL DIMENSIONS | Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.) |
| CUT-OUT DIMENSIONS | 238 x 238 mm (9.37 x 9.37 in.) |
| MOUNTING THICKNESS |
Ceiling Thickness (Maximum) :
40mm (1.58in.)
Ceiling Thickness (Minimum) :
6mm (0.24in.)
|
| MOUNTING DEPTH FROM SURFACE |
101.6mm (4 in.)
|
| OPTIONAL ROUGH IN FRAME | RIF200S |
| NET WEIGHT |
3.3kg (7.28 lbs)
|
| UNIT MEASUREMENT | Pair (Prices per piece) |
