MM/MC with Finesse

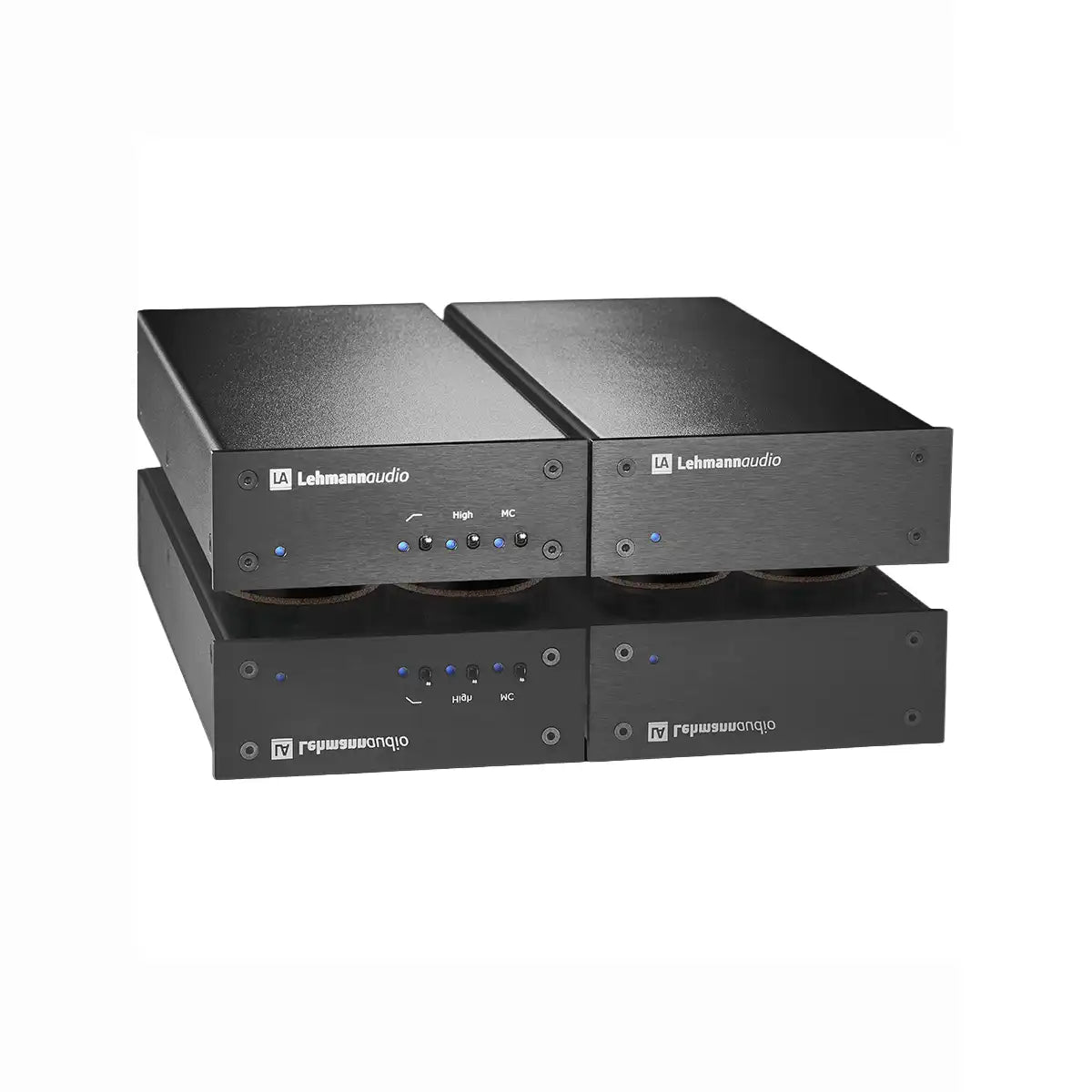

The Lehmannaudio Decade Jubilee is a precisely engineered MM/MC phono stage for demanding vinyl listeners. It combines high adaptability with a quiet, controlled, and very musical reproduction.
High Gain Reserve
With gain settings of 36, 46, 56, and 66 dB, the Decade Jubilee can be used with a wide variety of cartridges. This makes it flexible and suitable for everyday use with both classic MM systems and sensitive MC cartridges.
Precise Adjustment![]()
![]()
The input capacitance is selectable from 47 pF to 1,370 pF, and there's an input impedance with 47 kOhm, 1 kOhm, 100 Ohm, and an individual custom impedance. This allows the phono stage to be precisely tuned to the respective cartridge system.
Stable and Confident
The external PWX II LC power supply, the low output impedance of 5 ohms, and the discrete output stage ensure a controlled, open, and robust reproduction. Even longer cable runs can be confidently driven with this setup. [web:187][web:237]
For Quiet and Controlled Reproduction
With its switchable bass filter at 50 Hz and channel separation of over 80 dB at 10 kHz, the Decade Jubilee proves to be very mature both technically and sonically. It is a strong choice for listeners seeking a high-quality, finely tunable phono stage with a clear high-end focus.
Technical data
|
Product type
|
MM/MC phono stage |
|
Gain
|
36 / 46 / 56 / 66 dB |
|
Input impedance
|
47 kOhm / 1 kOhm / 100 Ohm / 1 x custom impedance |
|
Input capacitance
|
47 pF to 1,370 pF |
|
Output impedance
|
5 Ohms |
|
Channel separation
|
> 80 dB at 10 kHz |
|
Channel imbalance
|
typ. max. 0.5 dB |
|
Bass filter
|
50 Hz, 6 dB/oct. |
|
Power consumption
|
approx. 13 VA |
|
Dimensions
|
Audio section: 110 x 280 x 50 mm PWX II LC power supply: 110 x 280 x 50 mm |
|
Weight
|
Audio section: 0.87 kg PWX II LC power supply: 1.56 kg |
