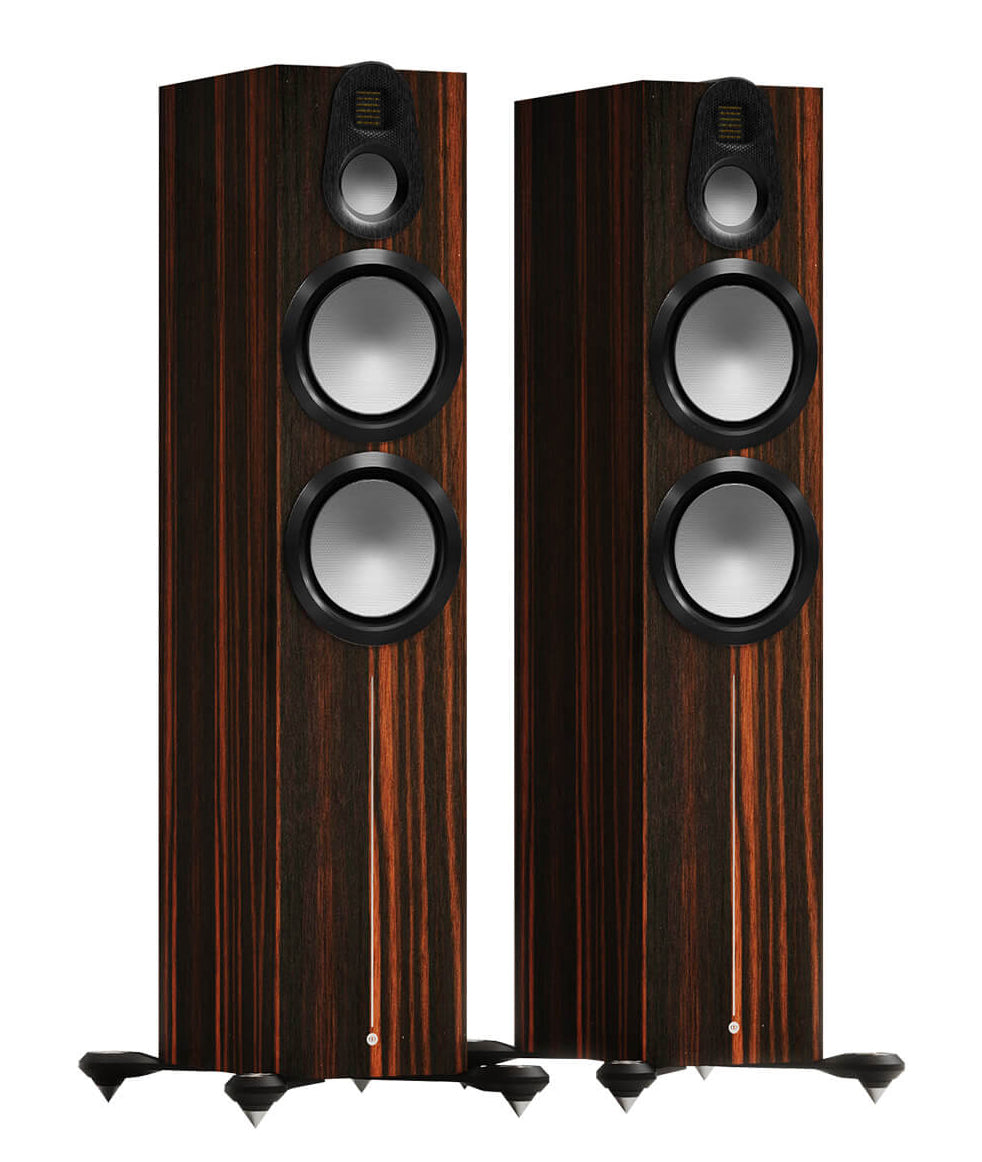

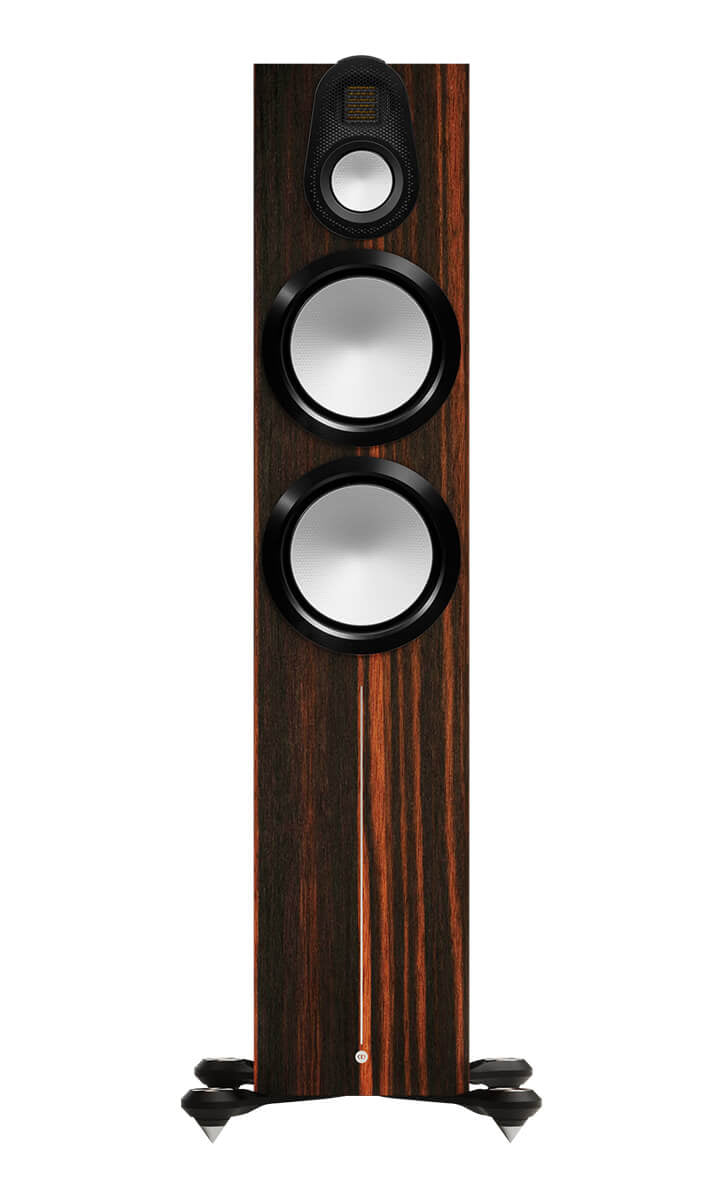

The Gold 500 6G is the flagship model of the new Gold Series 6G. It represents the highest level of performance and system design in this price segment. It is equipped with the latest MPD III high-frequency transducer, the new 3-inch midrange driver, and powerful 8-inch twin bass drivers, all benefiting from the latest HDT and C-CAM diaphragm technology and enormously powerful drive systems. The Gold 500 6G is a worthy showcase for the series; an impressive acoustic treat for the ears and eyes.
- 3-way design
- 1x MPD III tweeter
- 1 x 3"/76 millimeter midrange driver with HDT technology
- Steel Mid-Pod enclosure with die-cast aluminum baffle
- 2x 8"/203 millimeter bass drivers with HDT technology
- New crossover design with carefully selected, high-quality capacitors
- Bass reflex design with HiVe II technology and single-bolt-through technology
- Completely new die-cast aluminum outriggers and plinth/spike assembly with a new steel plate for increased structural integrity and improved stability

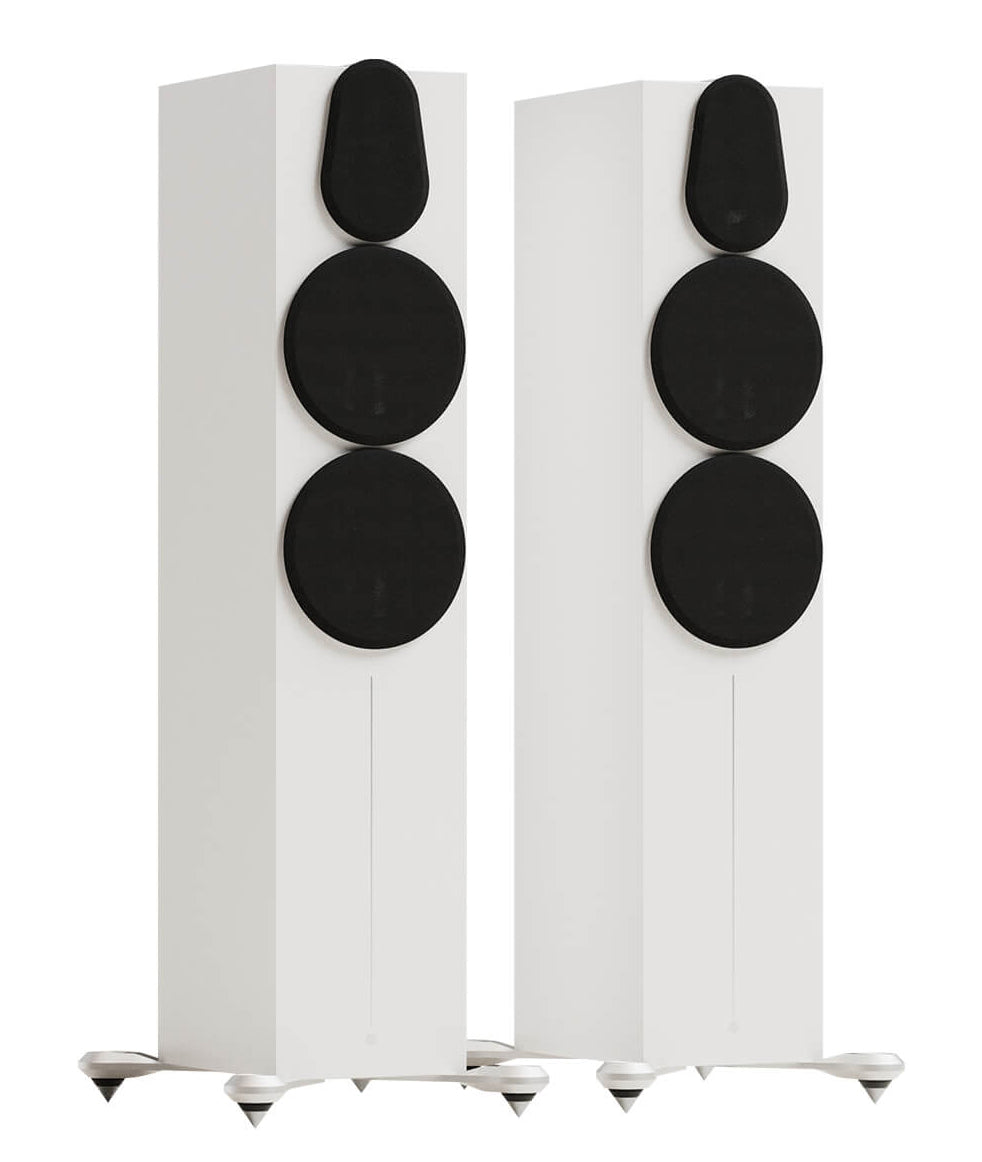

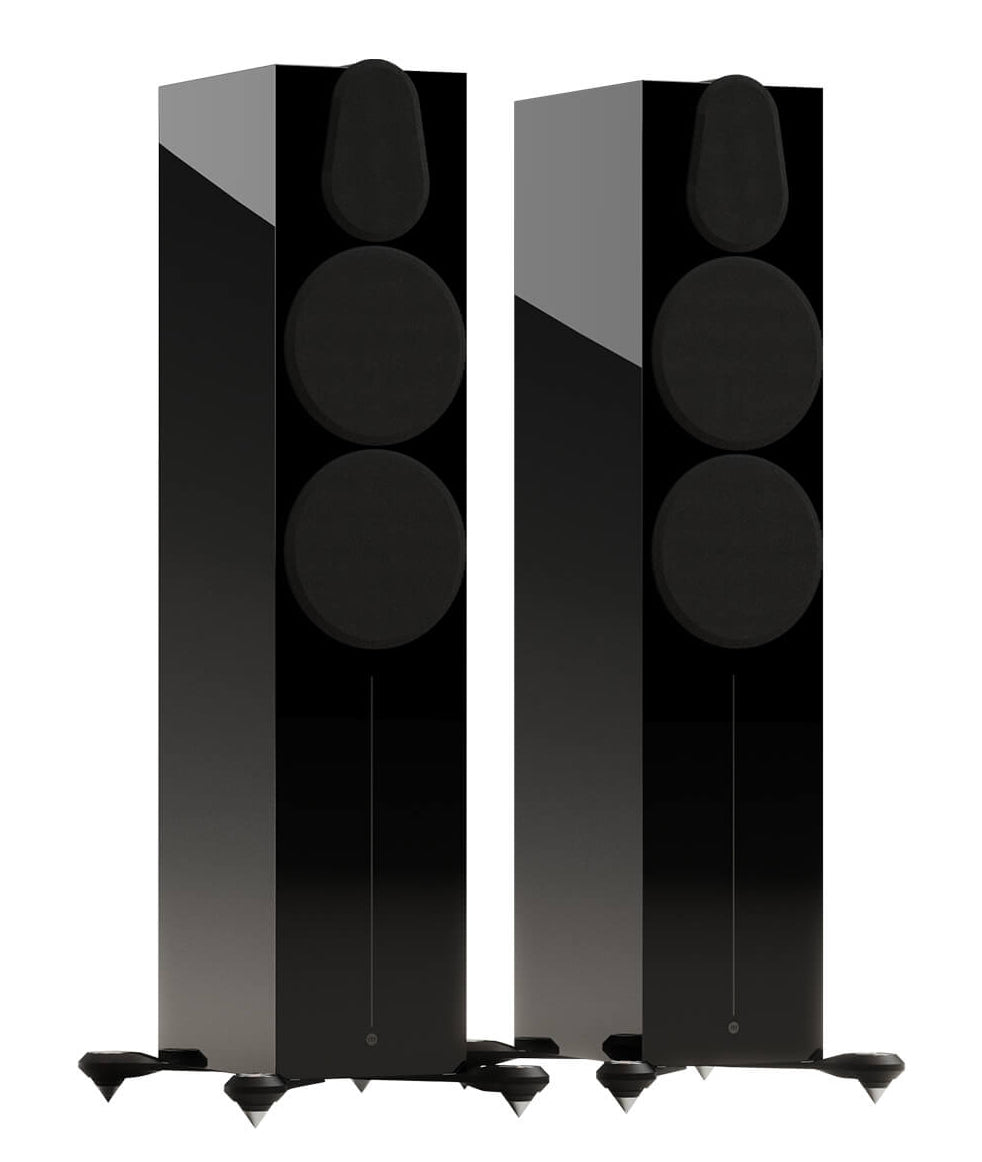

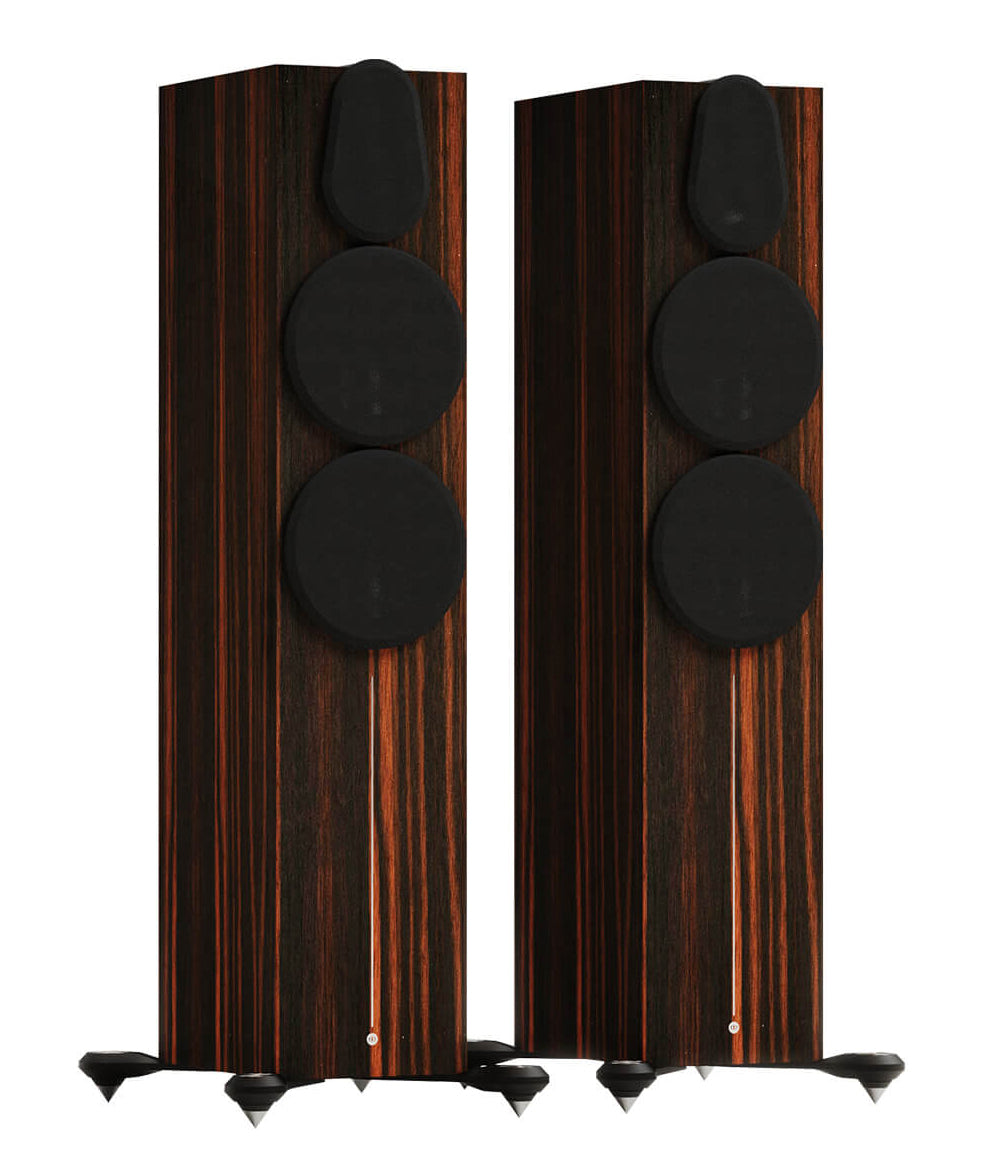

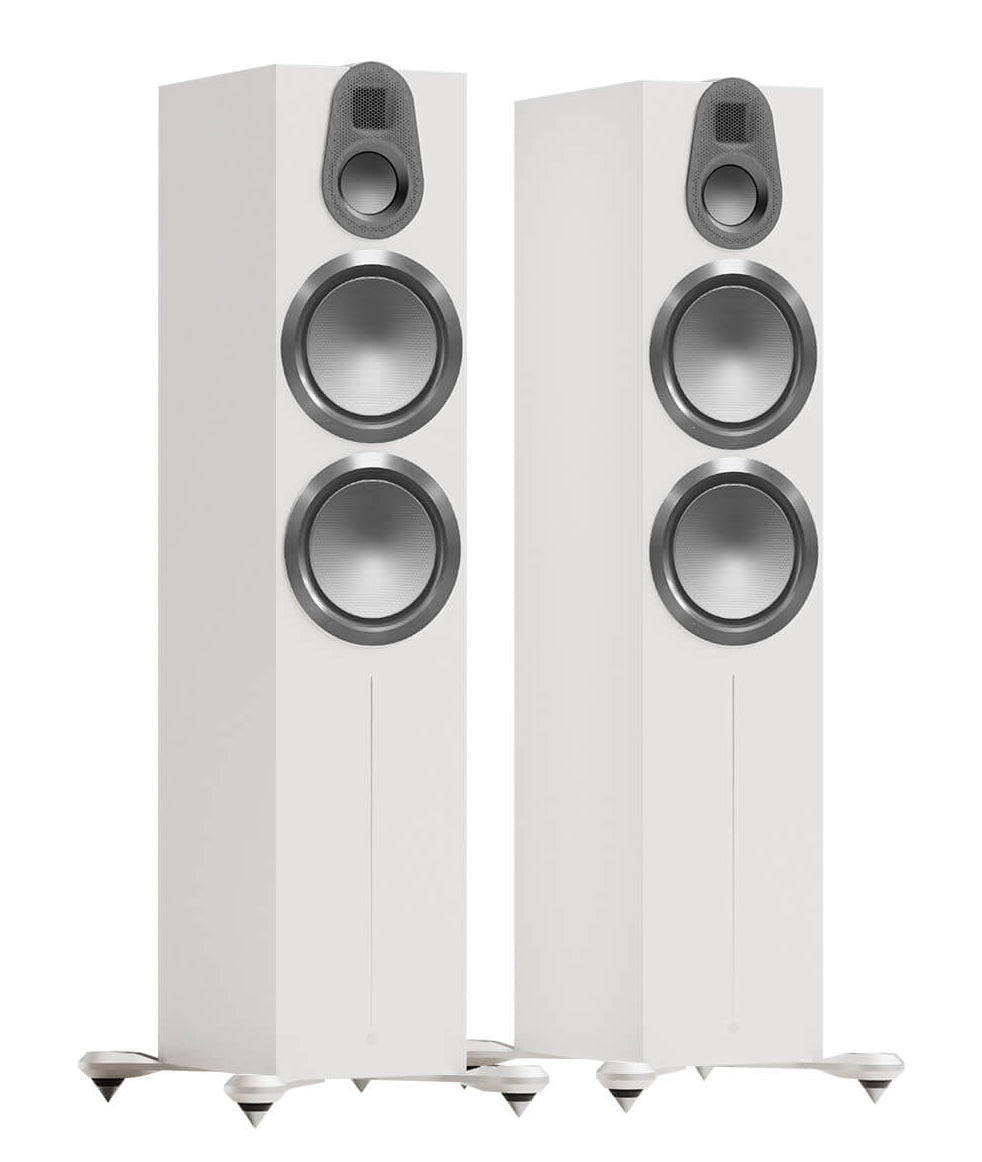

- Available finishes: Macassar veneer, High Gloss Black, and Satin White/li>
- Magnetic grilles for each individual driver included
Technical data
| Model | Monitor Audio Gold 500 6G |
| Type | 3-way |
| Sensitivity (2.83 volts @ 1m, free field) | 88.5 dB |
| Recommended amplifier power (RMS at 4 ohms, music signal) | 130 - 600 watts |
| Long-term load capacity (according to CTA 426-B) | 300 watts |
| Nominal impedance | 4 ohms |
| Minimum impedance (20 Hz to 20 kHz) | 4 ohms @ 150 Hz |
| Drive Unit Complement | 2 x 8" (203 mm) HDT woofer 1 x 3" (76 mm) HDT midrange driver 1 x MPD III tweeter |
| Frequency response, free field (-6 dB) | 44 Hz - 60 kHz |
| Frequency response, in room (-6 dB) | 25 Hz - 60 kHz |
| Maximum sound pressure level (AES75, Z-weighted) | 122 dB |
| Bass principle | HiVe II bass reflex |
| Bass reflex tuning frequency | 33 Hz |
| Crossover Frequency | LF/MF: 700 Hz MF/HF: 2.6 kHz |
| External Dimensions with all accessories fitted (H x W x D) | 1155 x 383 x 475 mm |
| Weight (each) | 26.5 kg |
