Power for Installations

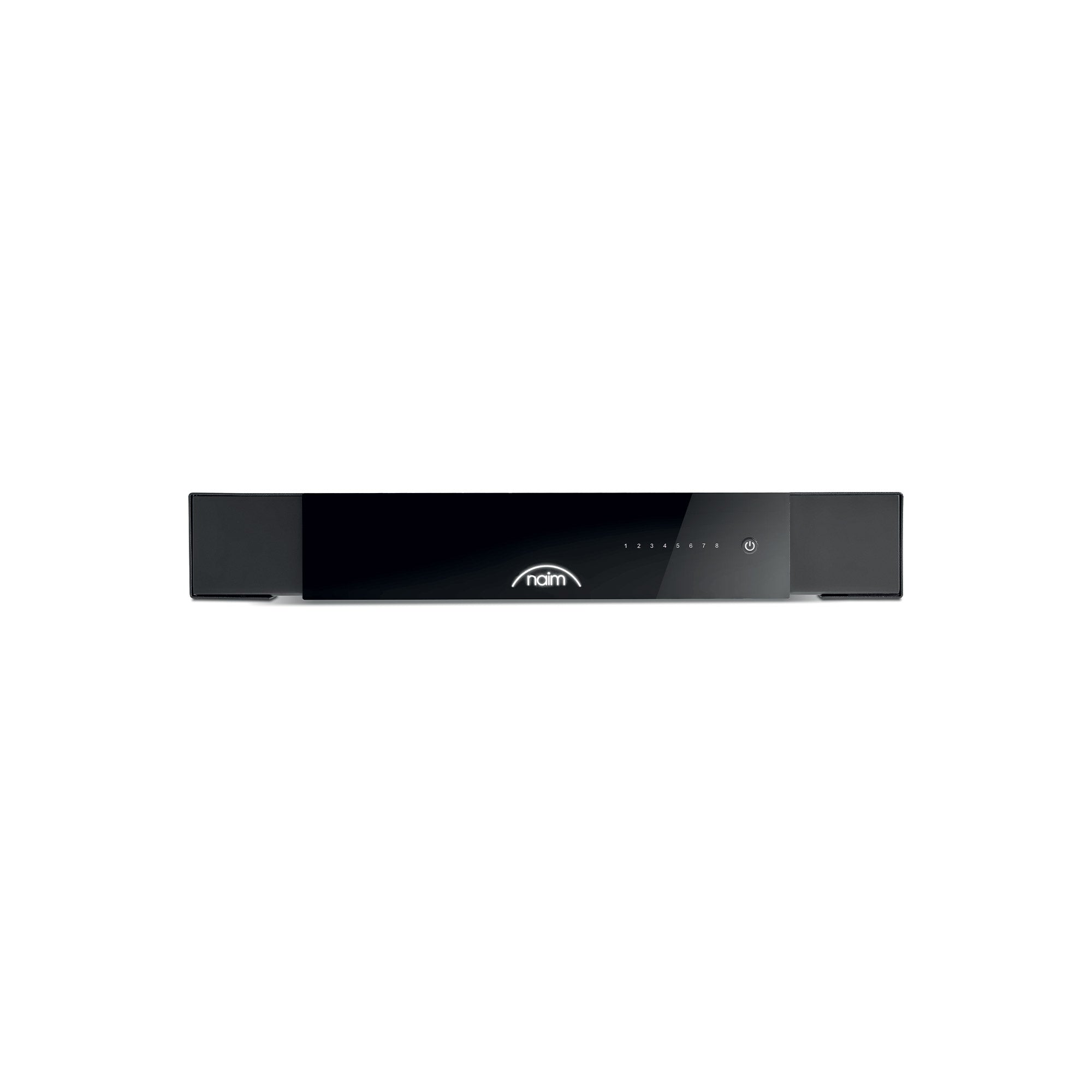

The Naim CI-NAP 108 is designed for demanding custom install and multi-zone systems. With eight amplifier channels and high output power per channel, it offers sufficient reserves for high-quality loudspeakers in living rooms, multiroom installations or complex home cinema setups.
Clean Signal Routing
The combination of low THD+N, high signal-to-noise ratio and wide frequency response ensures clean, controlled amplification. This keeps the amplifier neutral and unobtrusive even in larger systems, which is particularly important when multiple rooms or speaker zones need to be reliably supplied.
Flexible Connectivity

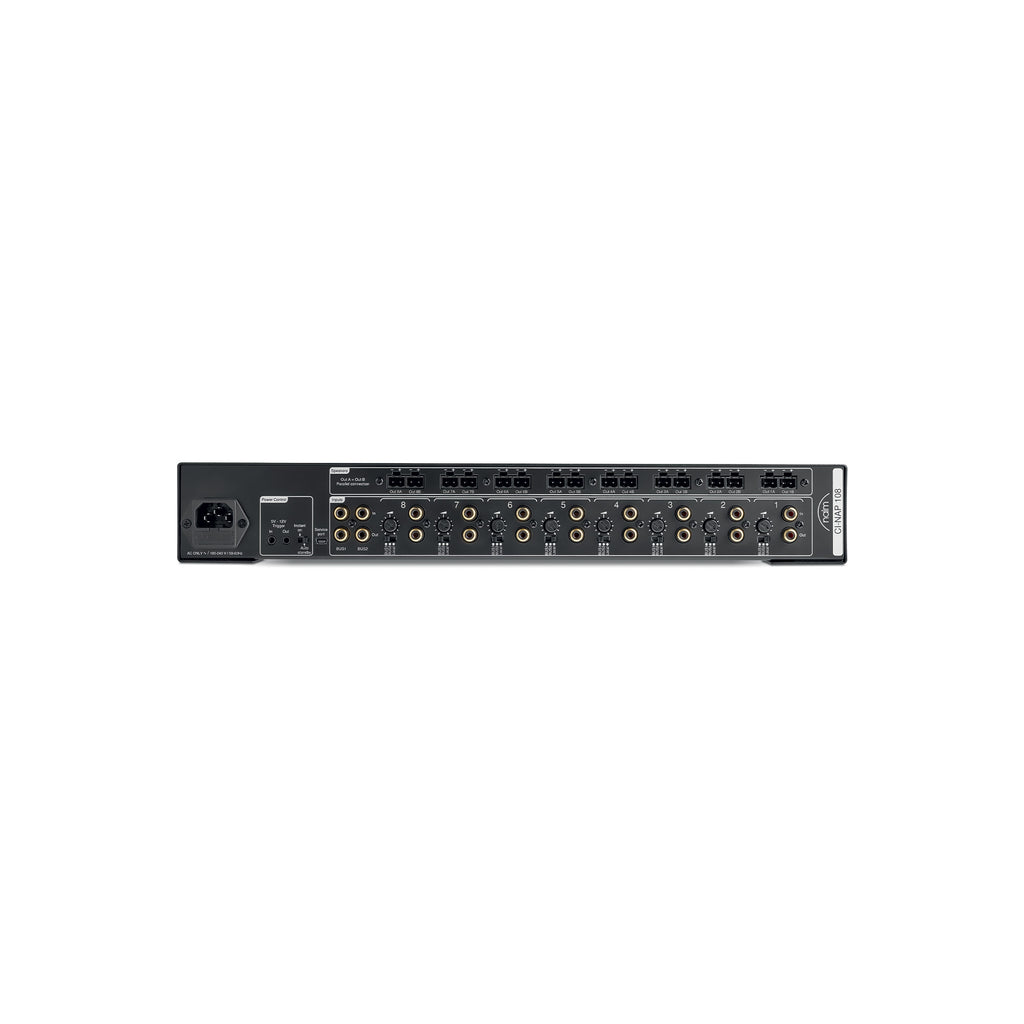

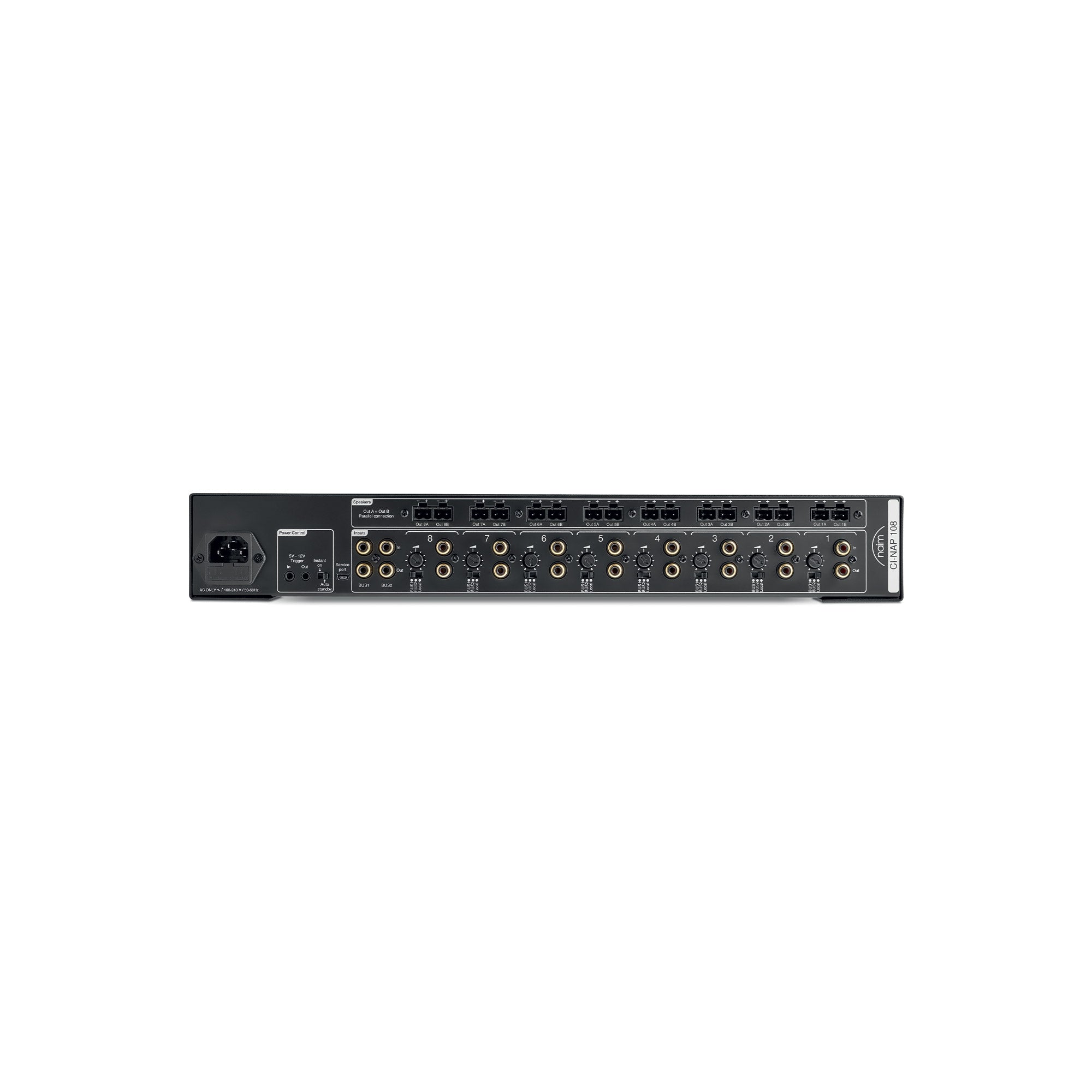

With ten RCA inputs, including eight local and two bus inputs, and ten RCA outputs, the CI-NAP 108 integrates well into existing installations. The Euroblock speaker outputs and independent level control facilitate practical implementation in racks and with parallel speaker distributions.

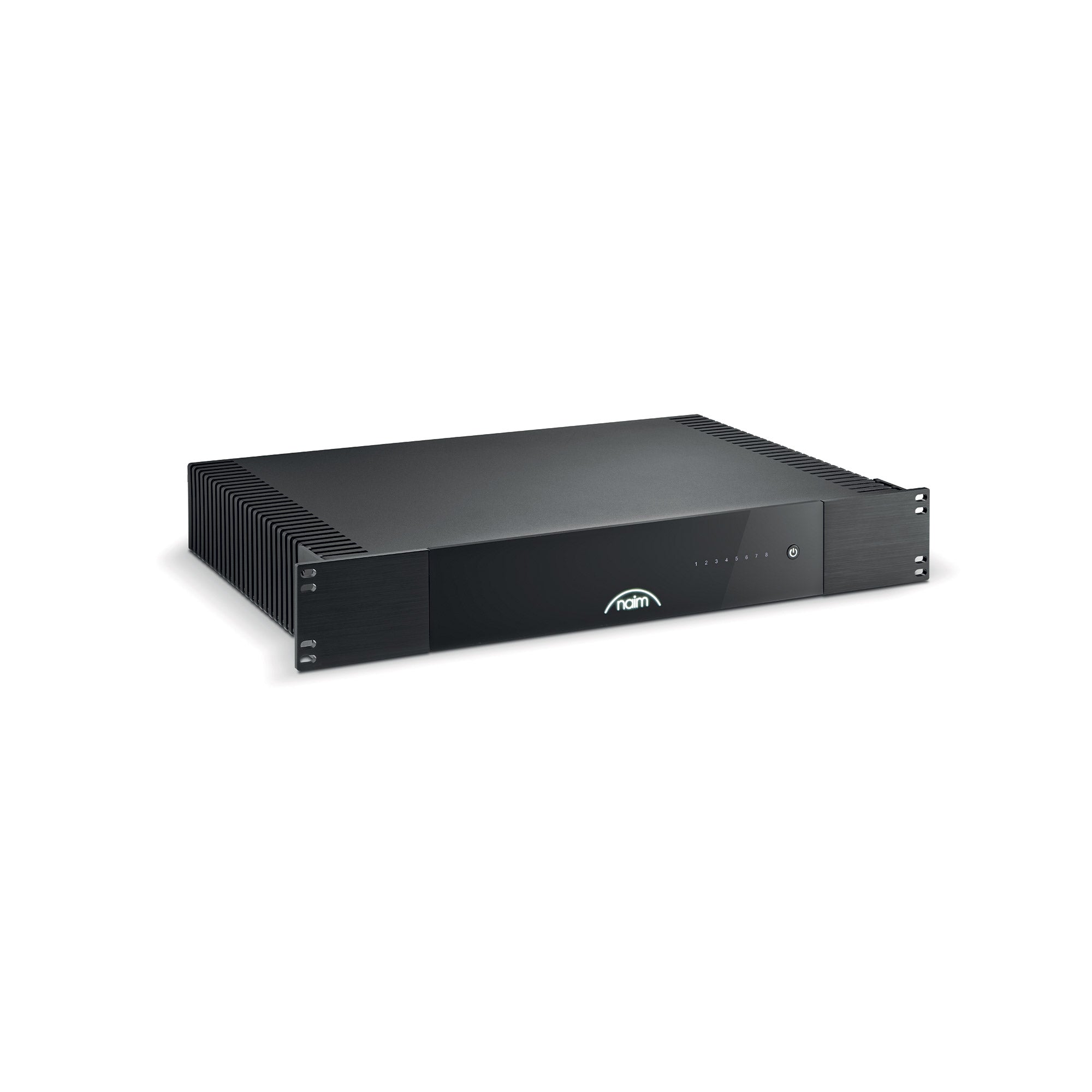

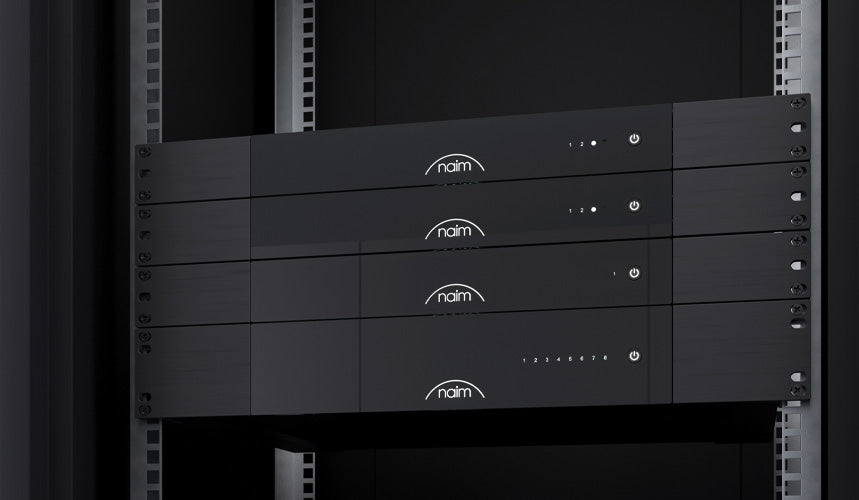

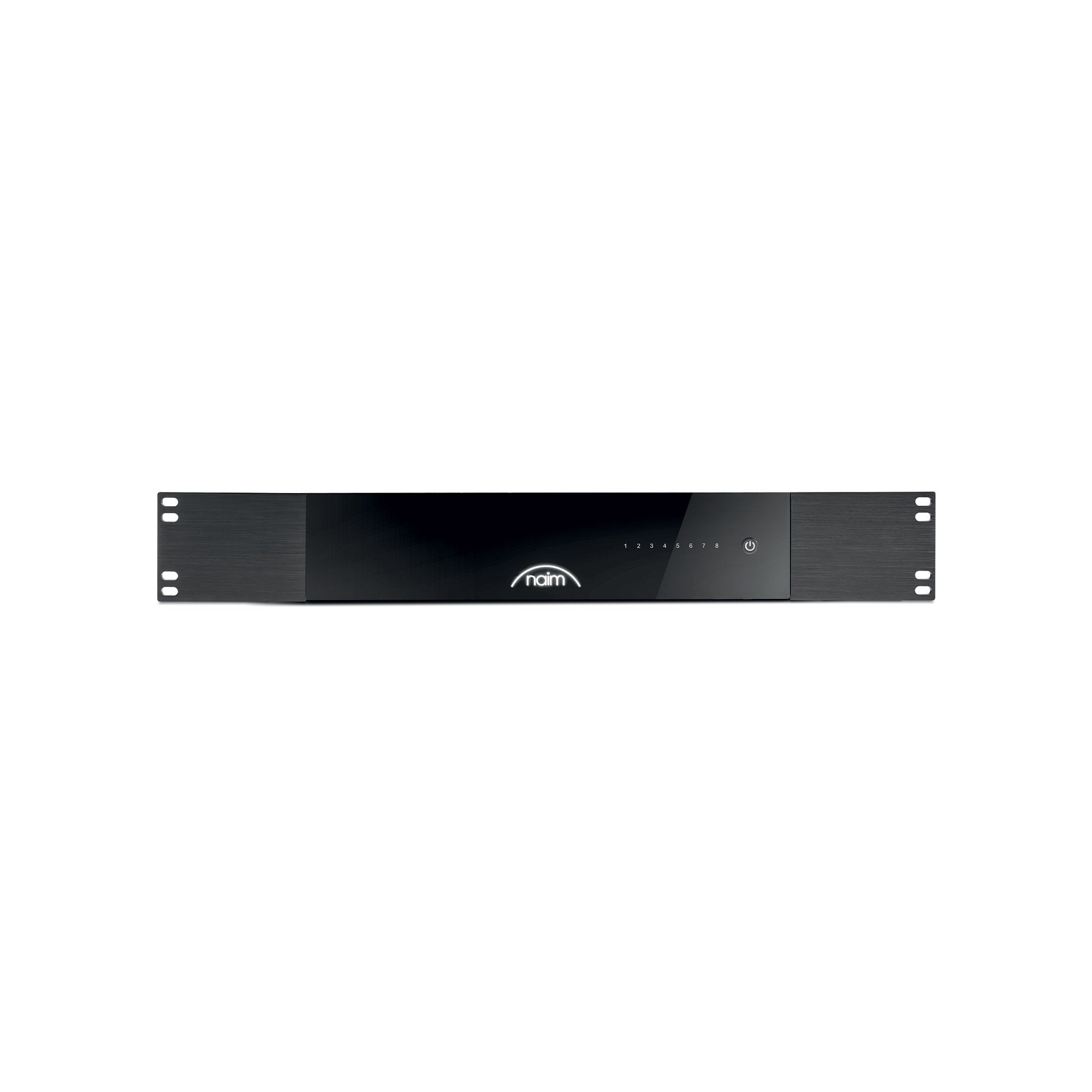

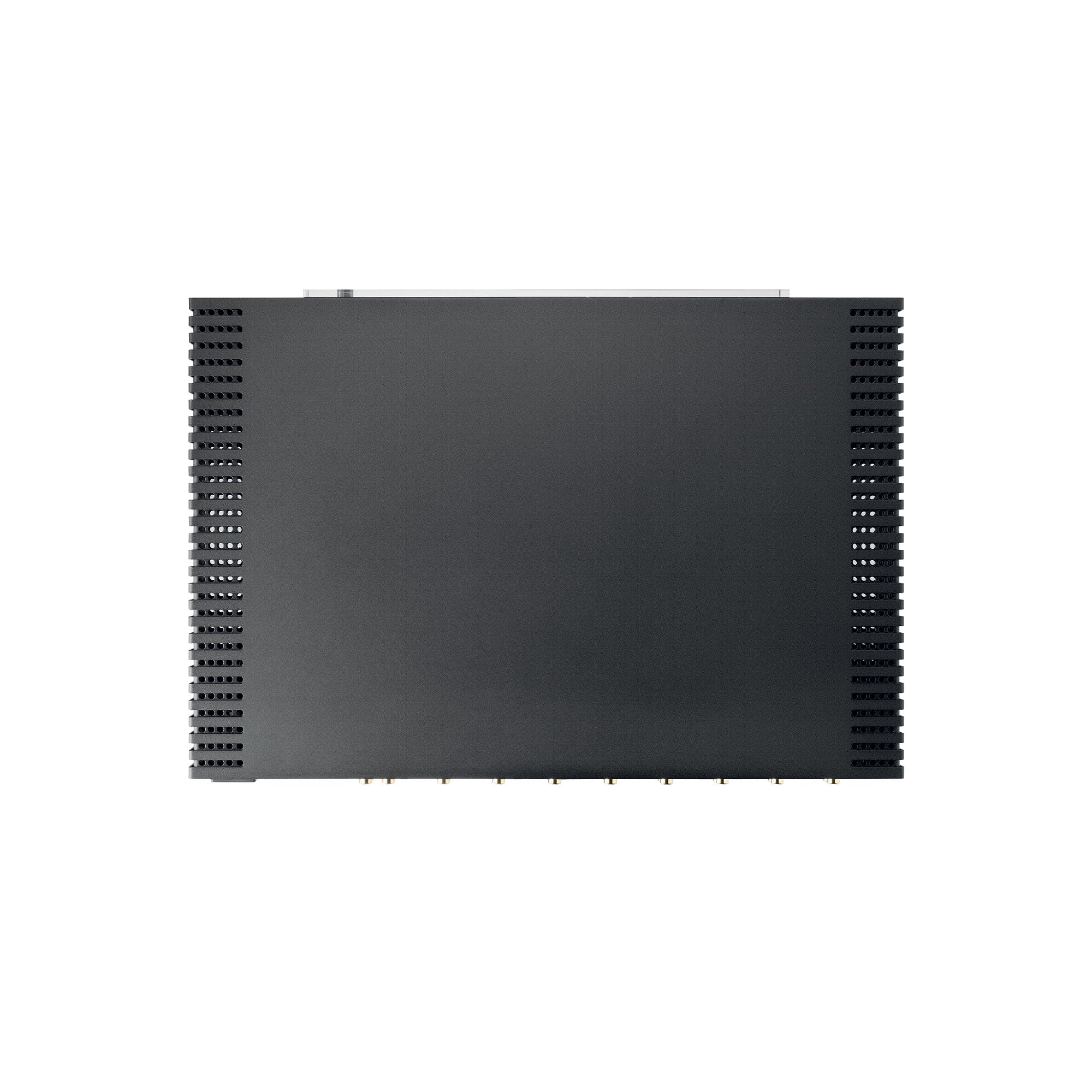

Rack-Mountable and Efficient
The 1.5U format, compact design, and automatic shutdown after signal loss make the amplifier appealing for continuous operation. It is thus designed for installations where space, operational reliability, and clean controllability are equally important.
Technical data
|
Product Type
|
8-Channel Power Amplifier |
|
Number of Channels
|
8 |
|
Power 8 Ohm
|
150 W per channel |
|
Power 4 Ohm
|
260 W per channel |
|
Frequency Response
|
3 Hz to 70 kHz |
|
THD+N
|
< 0.006 % at 1 kHz |
|
Signal-to-Noise Ratio
|
105 dB |
|
Analog Inputs
|
10 RCA, of which 8 local and 2 bus inputs |
|
Outputs
|
10 RCA, loudspeakers via Euroblock |
|
Rack Height
|
1.5 U |
|
Weight
|
7.7 kg |
