- For medium-mass tonearms
- Boron cantilever
- Stylus: Shibata, nude
- Aucurum coil wire
When it needs to be really good

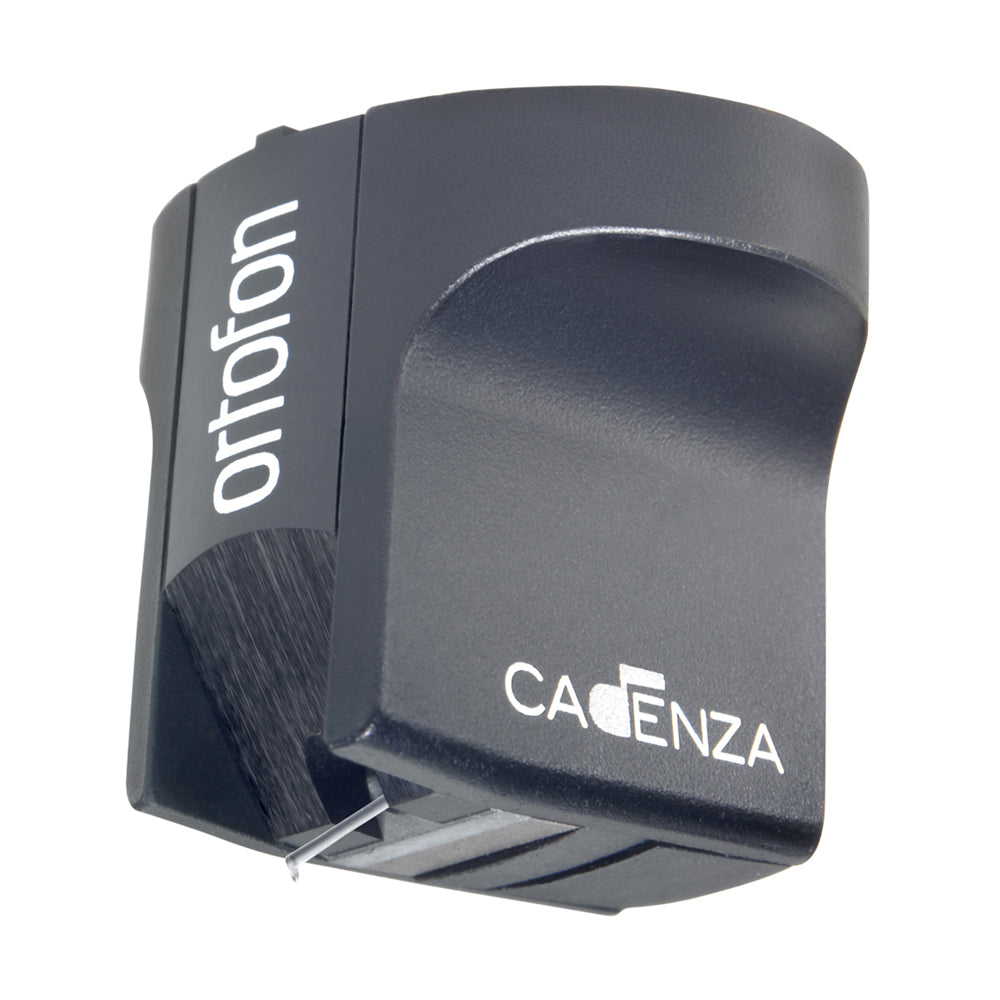

The Ortofon MC Cadenza Black is technically based in details on the Ortofon MC Cadenza Bronze. However, it uses an ultra-light and at the same time extremely stiff boron cantilever, which allows for further improved dynamic behavior compared to the MC Cadenza Bronze. The nude diamond with a Shibata cut used in this cartridge is the icing on the cake. A nude diamond has less moving mass compared to a bonded diamond. Due to the lower inertia, the stylus can follow the groove modulation more easily.
Technical data
|
Model |
Ortofon MC Cadenza Black |
|
Pickup Type: |
MC (low output moving coil) |
|
Output Voltage: |
0.33mV* |
|
Amplifier connector: |
Phono MC |
|
Channel deviation at 1 kHz: |
<0.8dB |
|
Crosstalk attenuation at 1kHz: |
>27dB |
|
Crosstalk attenuation at 15kHz: |
>20dB |
|
Frequency range: |
20-60,000Hz |
|
Frequency Response: |
20-20,000Hz +1.5dB/-0Db |
|
Sampling capability at 315Hz: |
90m** |
|
Needle Give: |
16µm/mN |
|
recomm. Tonearm Type: |
moderate |
|
Scan Diamond: |
Shibata, naked |
|
Fillet: |
r/R 6/50µm |
|
Tracking force range: |
20-25mN (2.0-2.5g) |
|
recomm. Tracking Force: |
23mN (2.3g) |
|
Scan Angle: |
20 degrees |
|
DC Resistance: |
5 ohms |
|
recomm. Terminator: |
50-200 ohms |
|
Case material: |
Stainless steel/aluminium |
|
Height: |
18mm |
|
Weight: |
10.7g |
|
Special features: |
Aucurum*** winding, boron cantilever |
|
*at 1000Hz, 5cm/sec. **at recommended tracking force. ***Aucurum: Wire made of gold-plated, monocrystalline, oxygen-free 6N pure copper (OFC 99.9999%) |
|
|
|
|
