2M styli are interchangeable

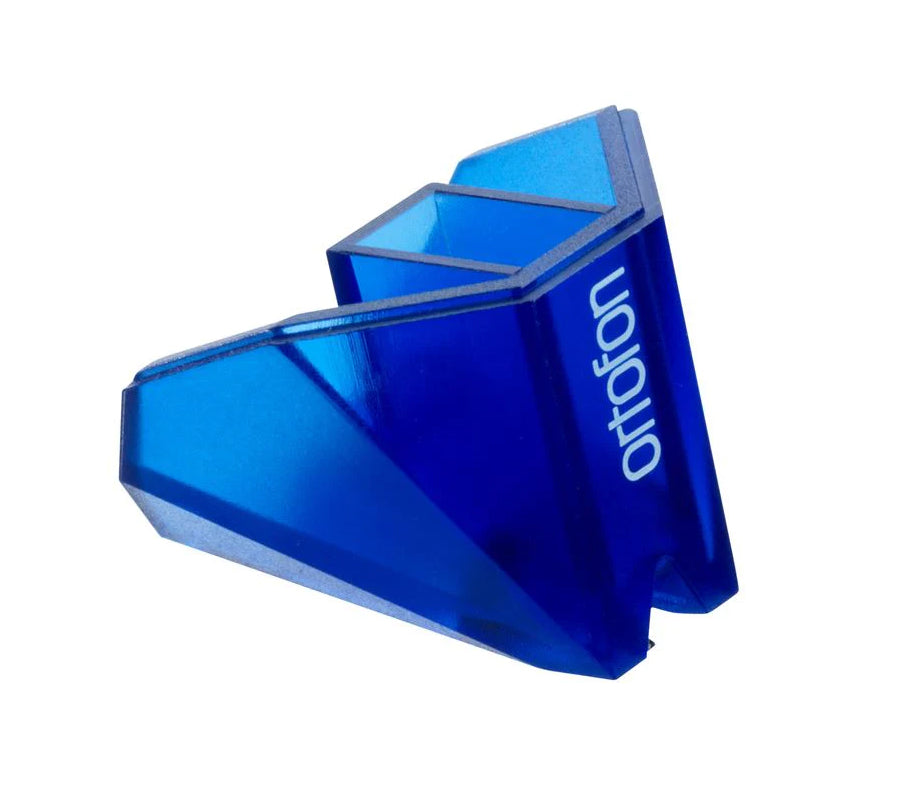

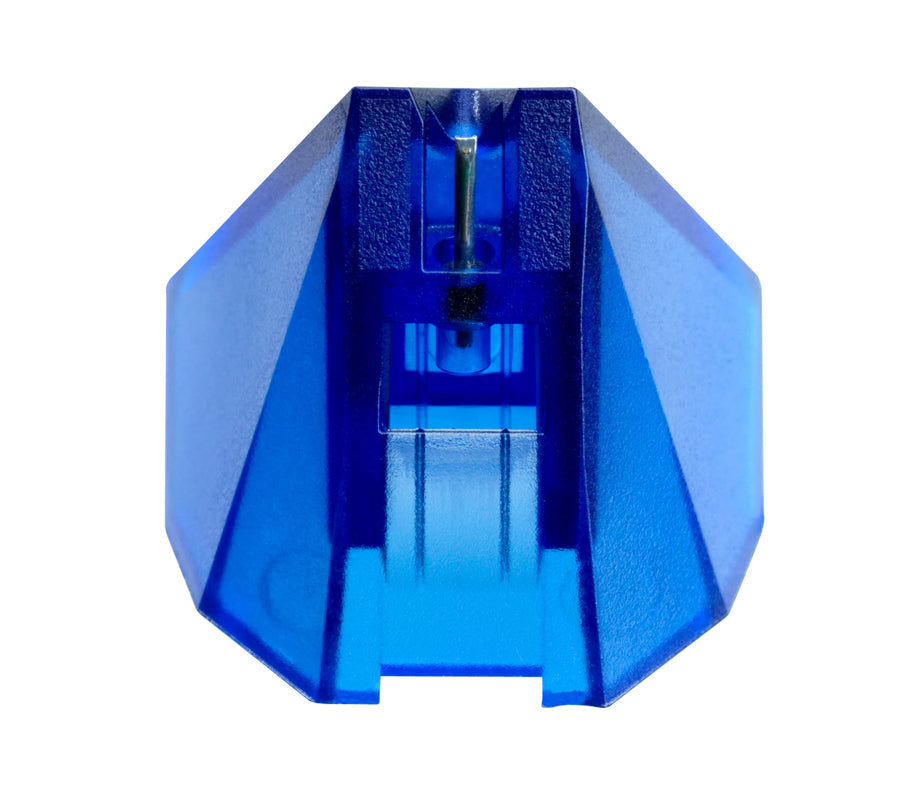

The 2M Blue stylus is not just a replacement stylus, but also the perfect upgrade for your 2M Red cartridge thanks to the Nude Elliptical diamond, which reproduces information from the groove with higher accuracy. It's a small but significant step that brings you closer to the artist's intention and makes a big difference in how you experience and appreciate your music.
Stylus life: With proper care, up to 1000 hours without performance degradation is possible.
Recommended for the following cartridge systems:
- 2M Blue
- 2MR Blue
- 2M Blue pre-mounted
And the perfect upgrade for your:
- 2M Red
- 2MR Red
- 2M Red pre-mounted
Technical data
|
Model
|
Ortofon 2M Blue
|
|
Frequency response 20 Hz - 20 kHz
|
2 / - 1 dB |
|
Tracking ability at 315Hz at recommended tracking force
|
80 µm |
|
Compliance, dynamic, lateral
|
20 µm/mN |
|
Stylus type
|
Nude Elliptical |
|
Stylus tip radius
|
r/R 8/18 µm |
|
Tracking force range
|
1.6-2.0 g (16-20 mN) |
|
Tracking force, recommended
|
1.8 g (18 mN) |
|
Tracking angle
|
20° |
|
Equivalent stylus tip mass
|
0.5 mg |
|
Stylus colour
|
Blue |
