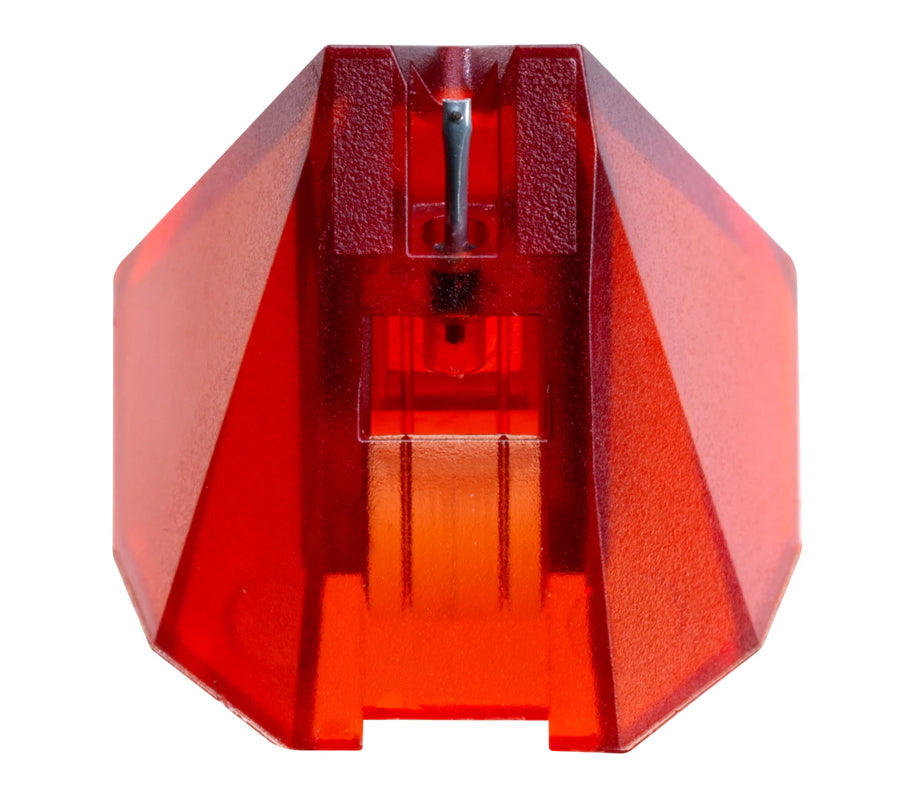

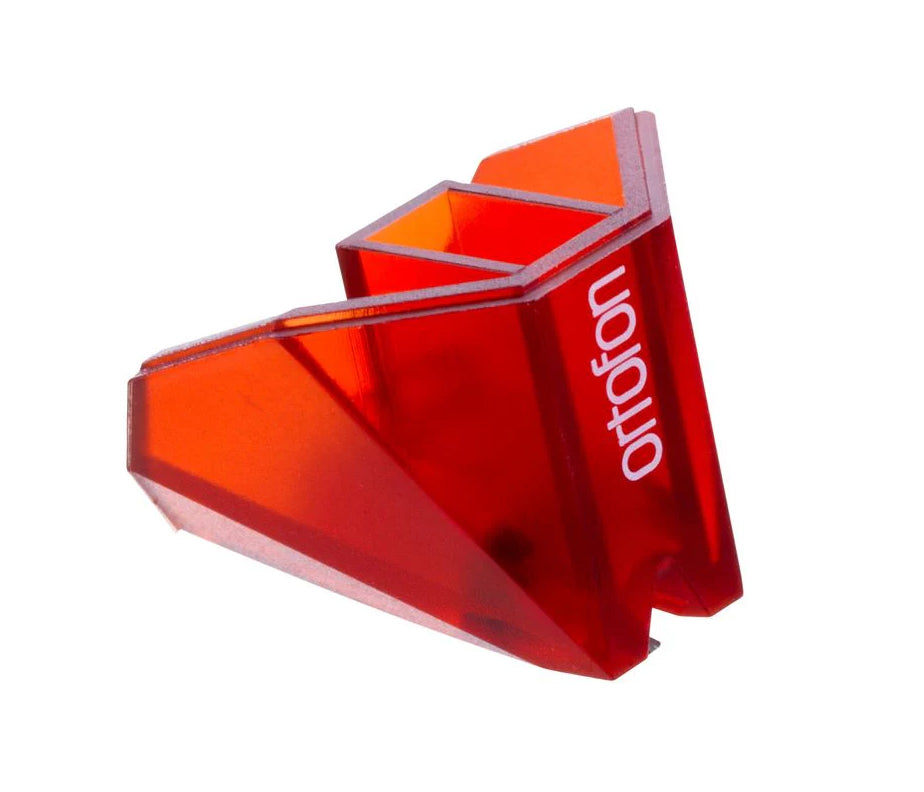

Stylus 2M Red is a replacement stylus for Ortofon 2M Red
With the Stylus 2M Red, you can bring music to life in its own unique way. It's like stepping into the music itself. The Stylus 2M Red is the entry-level model in Ortofon's 2M series, but what an entry it is.
Stylus life: With proper care, up to 1000 hours are possible without performance degradation.
The Stylus 2M Red is recommended for the following cartridges:
- 2M Red
- 2MR Red
- 2M Red pre-mounted
Technical data
|
Model
|
Ortofon 2M Red
|
|
Frequency response 20 Hz - 20 kHz
|
3 / - 1 dB |
|
Tracking ability at 315Hz at recommended tracking force
|
70 µm |
|
Compliance, dynamic, lateral
|
20 µm/mN |
|
Stylus type
|
Elliptical |
|
Stylus tip radius
|
r/R 8/18 µm |
|
Tracking force range
|
1.6-2.0 g (16-20 mN) |
|
Tracking force, recommended
|
1.8 g (18 mN) |
|
Tracking angle
|
20° |
|
Equivalent stylus tip mass
|
0.5 mg |
|
Stylus colour
|
Red |
