- 8 x 150 watts from robust Class AB power amplifiers into 4 ohms
- Specially designed toroidal transformer
- 12V trigger output
- 4 individual 24-bit/192kHz Digital/Analog Converters
- With 19-inch adapters
High-efficiency power in the Rotel C8+ Class AB multi-channel amplifier with 8 channels delivering excellent sound quality with 150W per channel or 300W bridged into 4 ohms using proprietary Rotel amplifier technology.

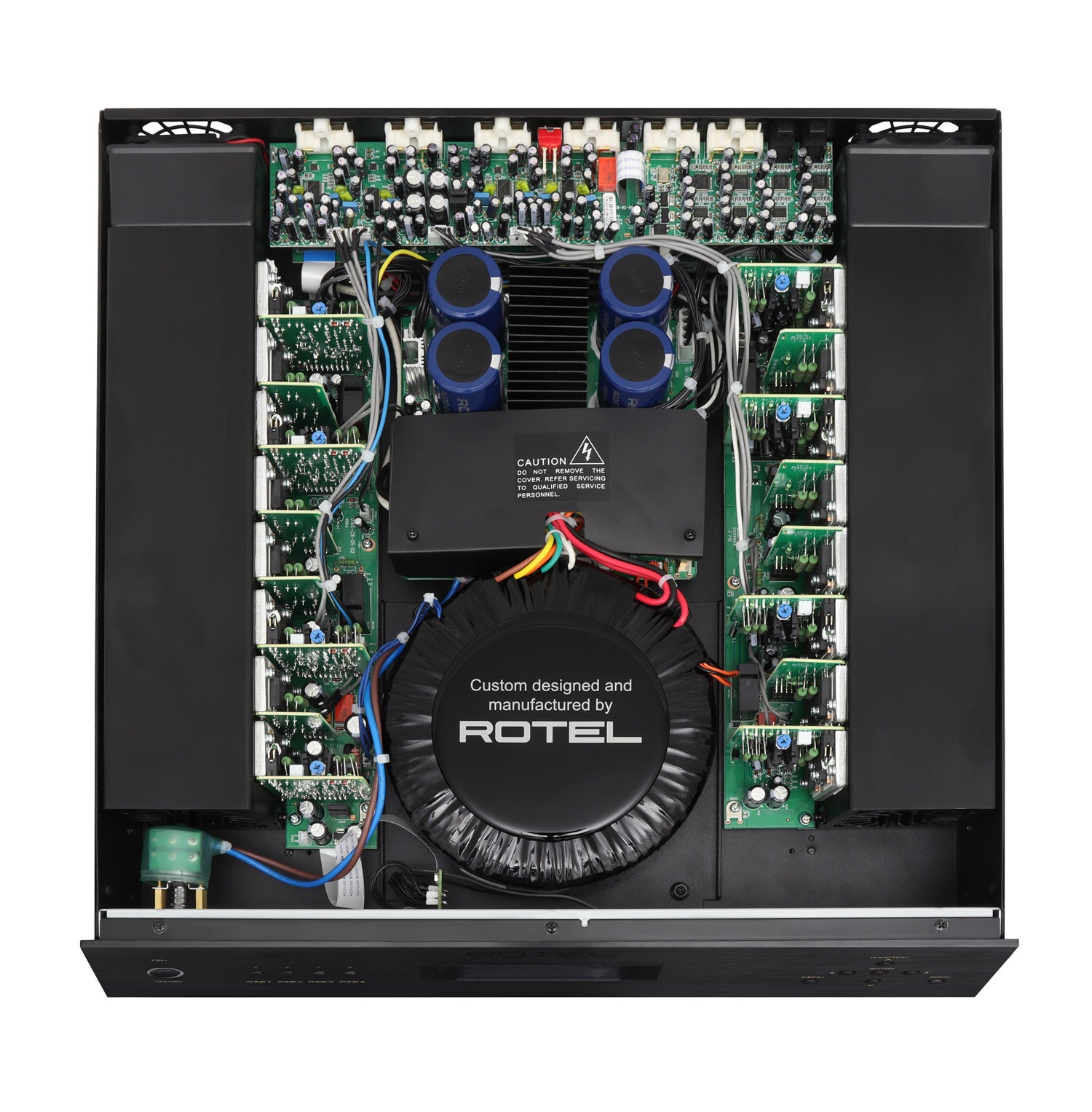

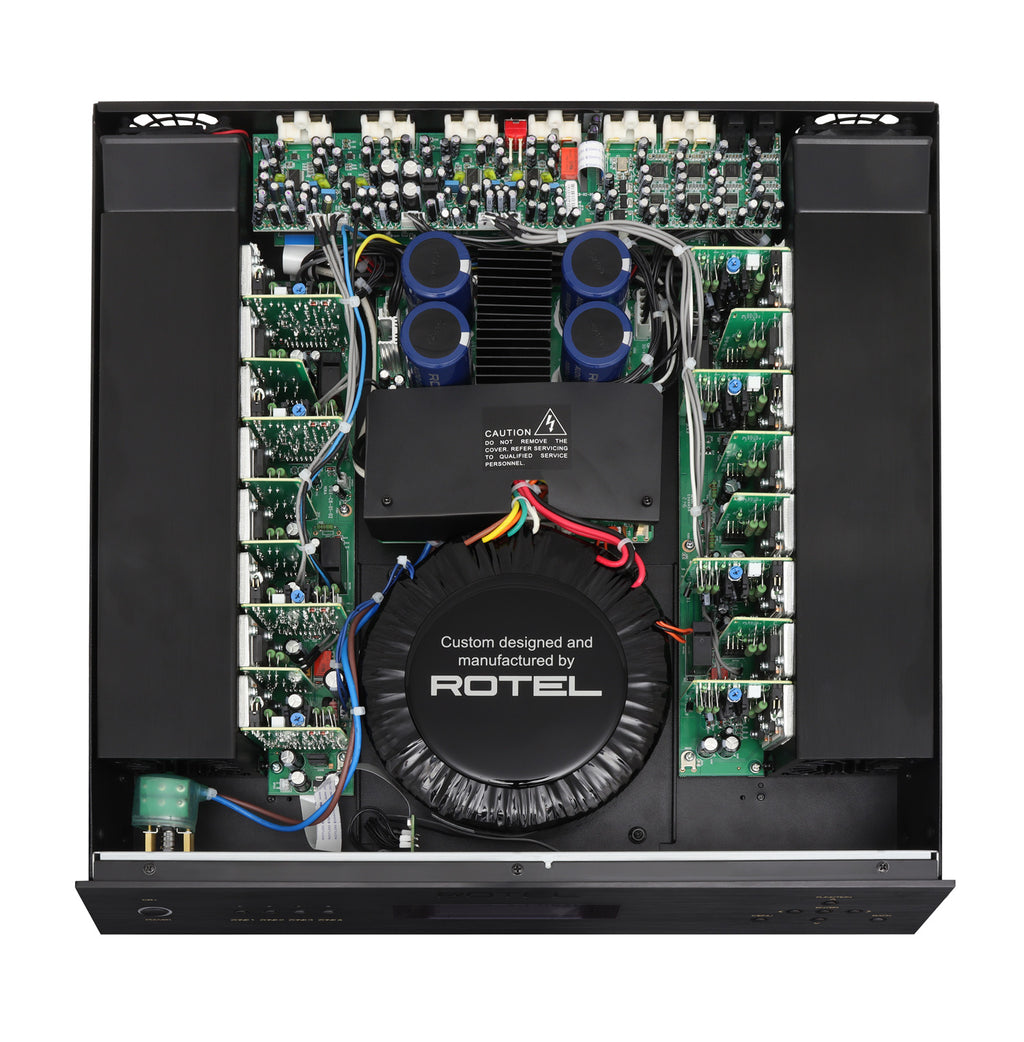

The oversized toroidal transformer, manufactured in-house, powers 32 output components for effortless, controlled bass reproduction.

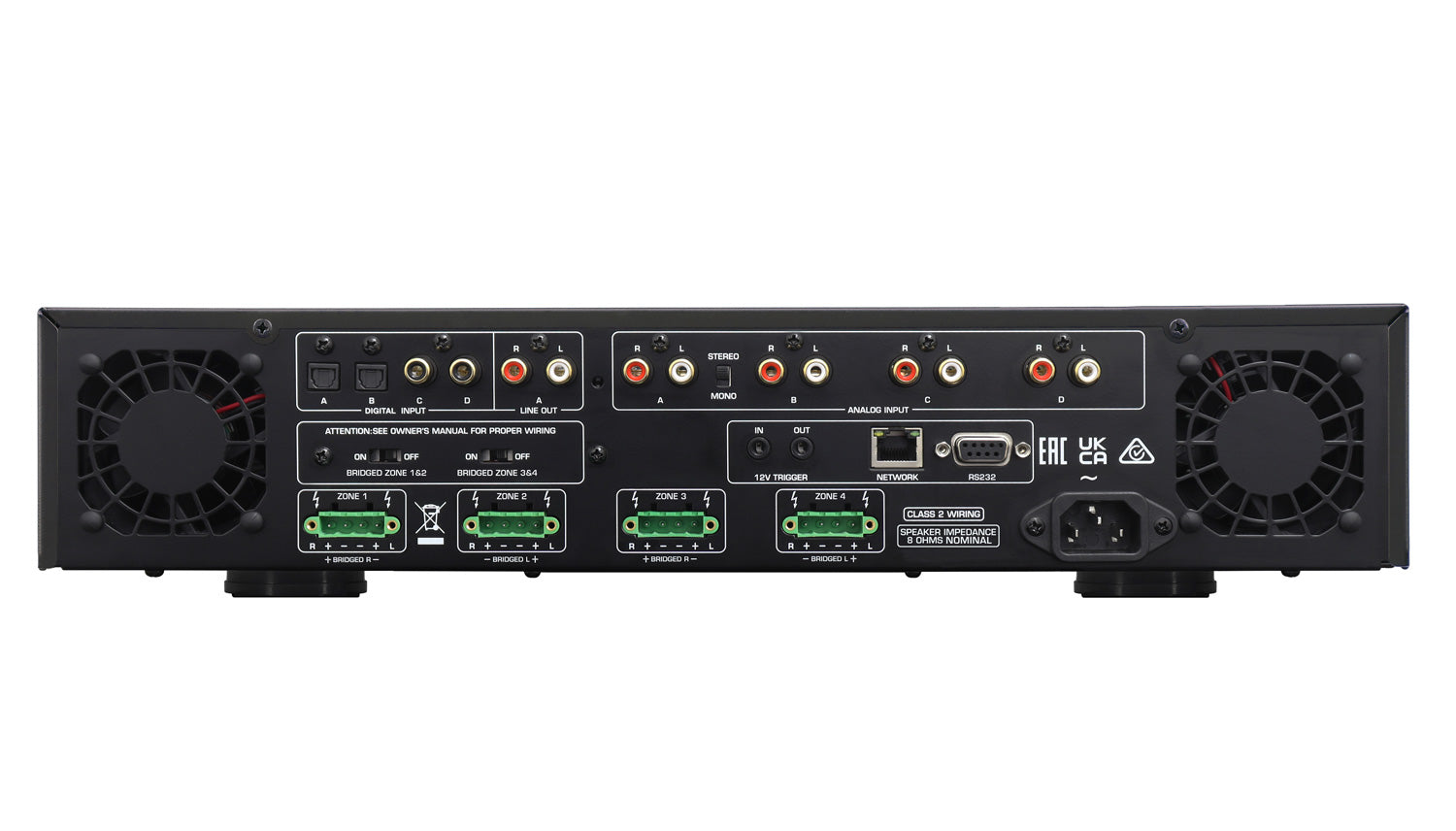

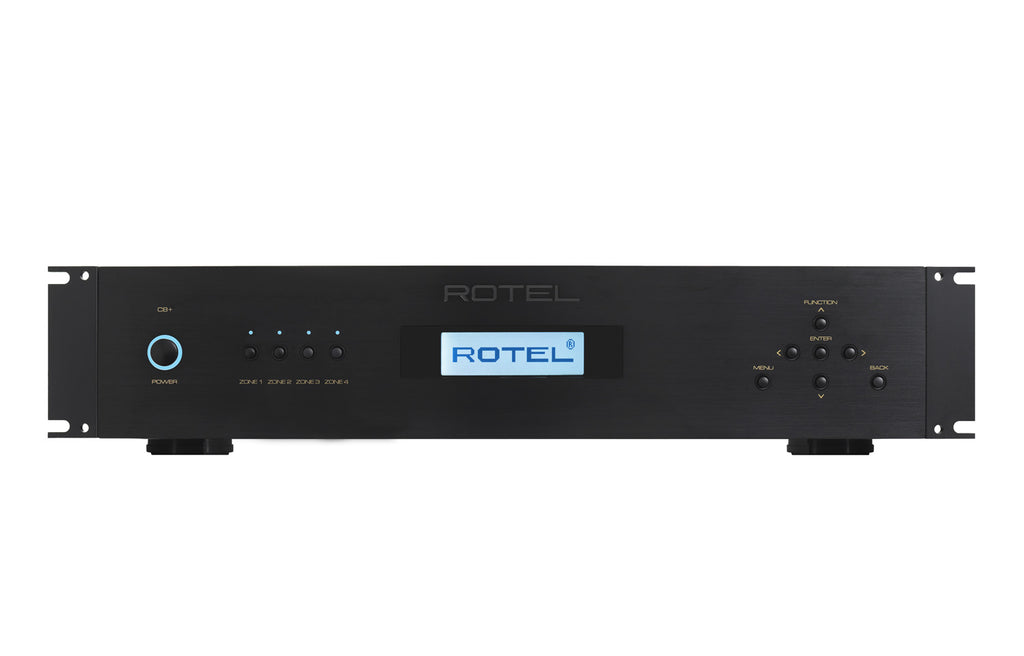

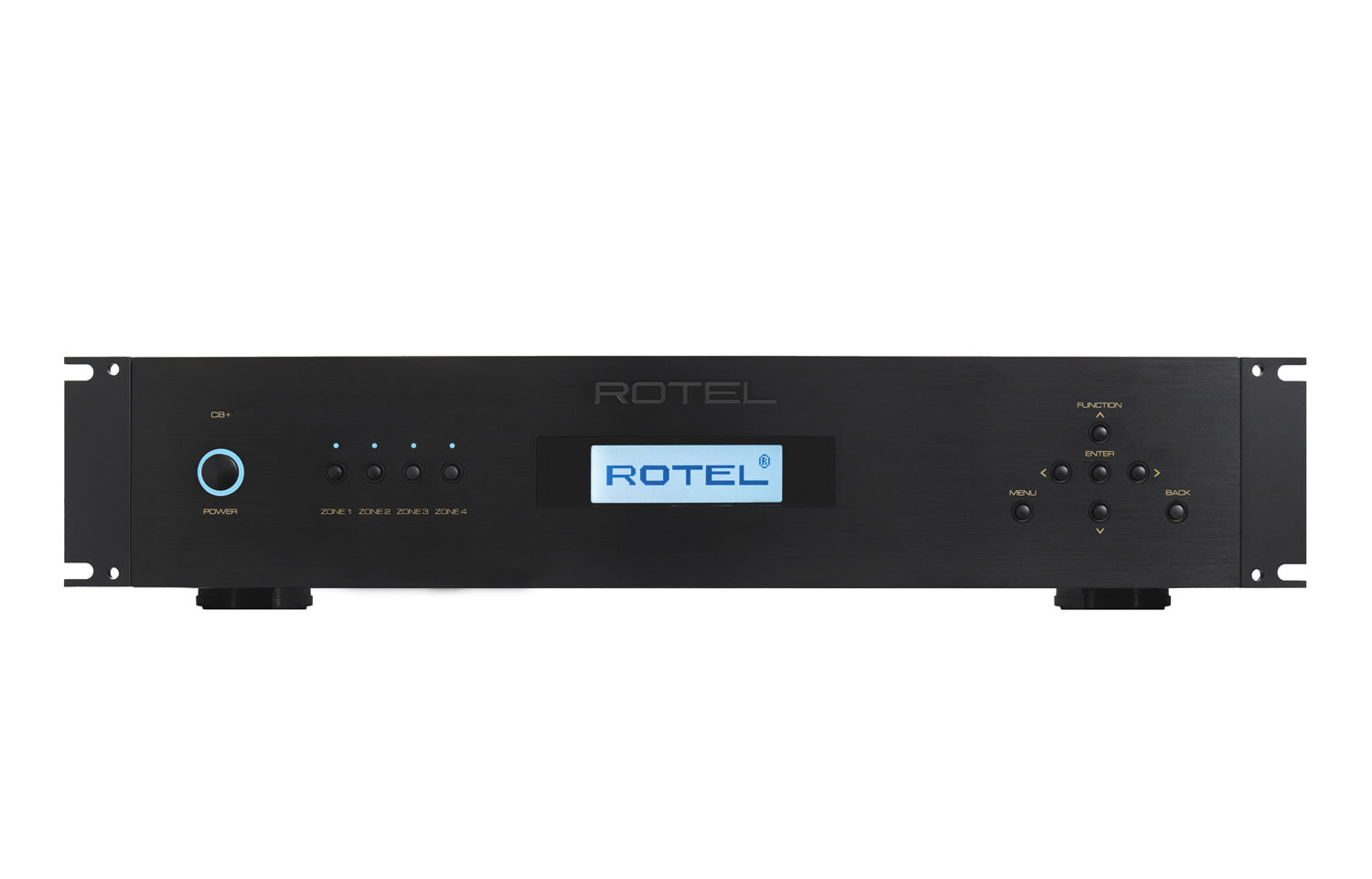

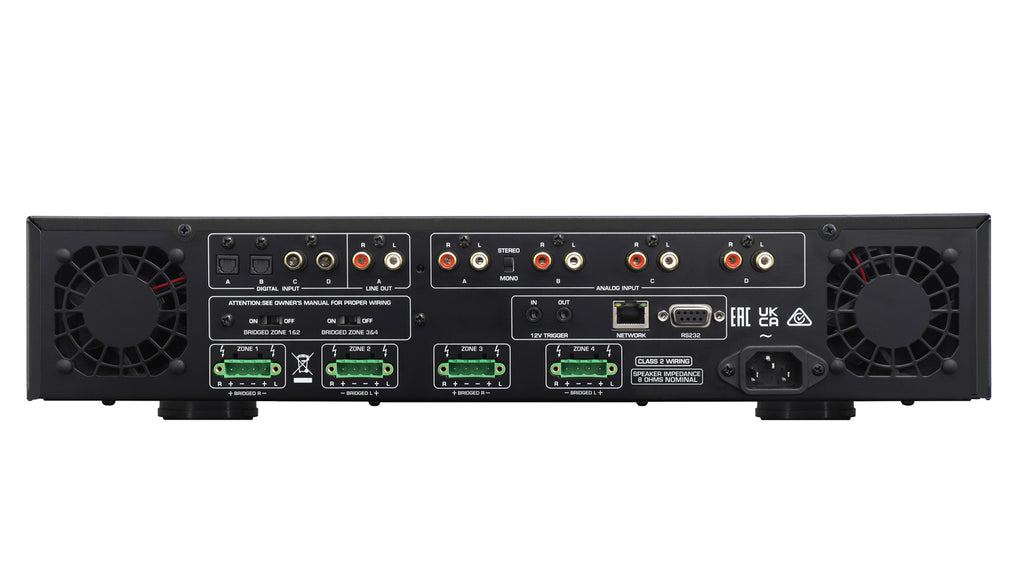

Maximum installation flexibility thanks to 4 analog and 4 digital inputs that can be routed to all zones. Front display and controls for source selection and individual adjustment of volume, bass, and treble in each channel.
IP and RS232 interfaces, as well as 12V triggers for integration into control systems.
2U chassis requires no top or bottom clearance when rack-mounted.
The C8+ is only available in black.
Technical data
| Device | Rotel C8+ |
| Maximum output power | 150 watts/channel (8 channels used, 4 ohms) |
| Continuous output power | 100 watts/channel (8 channels used, 8 ohms) |
| Bridges power output | 300 watts/channel (4 channels used, 4 ohms) |
| Total harmonic distortion | < 0.1% |
| Intermodulation distortion | < 0.1%(60Hz : 7kHz, 4:1) |
| Frequency Response | High level inputs: 10 Hz - 100k Hz, 0 ±; 0.5dB |
| Tone controls | Bass: ± 10 dB at 100 Hz Treble: ± 10dB at 10kHz |
| Damping Factor | 80(20 Hz - 20 kHz, 8 ohms) |
| Input sensitivity/impedance | High level inputs (RCA): 0.43 V / 31k ohms |
| Overload | High level inputs (RCA): 2.8 V |
| Signal-to-noise ratio (IHF "A") |
High level inputs: 100 dB |
| Crosstalk/Disconnect | > 50dB |
| Digital to analog converter | Texas Instruments |
| Digital Section | |
| Frequency Response | 10Hz - 20kHz (0 ± 0.5dB) |
| Signal-to-noise ratio (IHF "A") |
102dB |
| Input sensitivity/impedance | 0 dBfs / 75 ohms |
| Coaxial/Optical | SPDIF LPCM (up to 24-bit / 192kHz) |
| Power supply | 230V, 50Hz |
| Power consumption | 980 watts |
| Power consumption (standby) | Normal < 0.5 watts Network Standby < 2 watts |
| BTU (4 ohms, at 1/8th power) | 2744 BTU/hr |
| Dimensions (W x H x D) | 430x97x414mm |
| Front panel height | 2U / 88.1mm |
| Net Weight | 18.35kg |
