- High-performance multi-channel amplifier with 4x 70 watts per channel
- Audiophile Class AB design
- Front-mounted level controls
- 12V trigger input
- Automatic power-on
- Internal signal link
- Signal output link
- High-quality speaker screw terminals
- 3 rack units (3U)

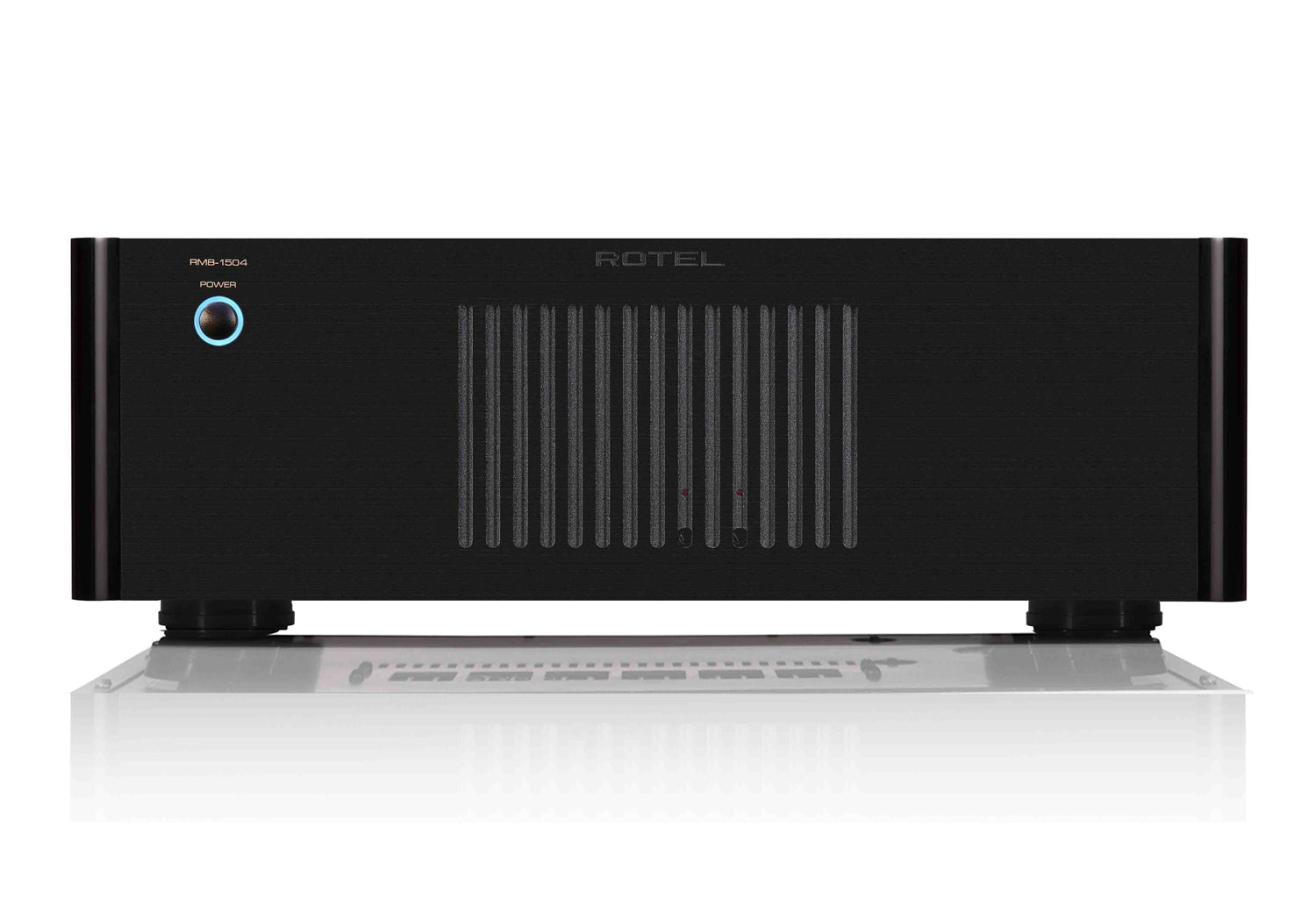

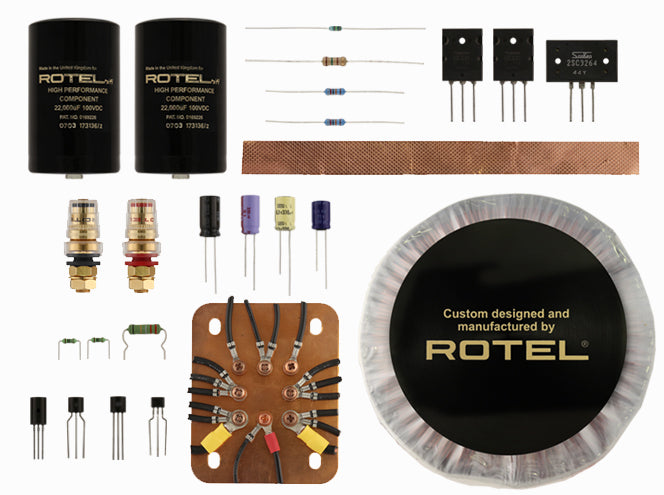

The RMB-1504 is a modern four-channel power amplifier. Thanks to discrete power transistors, a powerful power supply with a toroidal transformer, first-class components, and Rotel's Balanced Design concept, it delivers the highest reproduction quality. Due to its high current delivery capability, the RMB-1504 can be easily combined with demanding loudspeakers.
More information coming soon.
Technical data
| Model | RMB-1504 |
| DIMENSIONS (W × H × D) | 431 × 144 × 443mm 17" × 5.7" × 17.5" |
|
FRONT PANEL HEIGHT
|
3U / 132.6mm (5.25")
|
|
POWER REQUIREMENTS
|
120V, 60Hz
|
|
POWER CONSUMPTION
|
450W
|
|
STANDBY POWER CONSUMPTION
|
Standby < 0.5W
Signal Sense 1 W
|
|
NET WEIGHT
|
14.9kg (32.8lbs.)
|
|
BTU RATING
|
810 BTU/h
|
|
CONTINUOUS POWER OUTPUT
|
4 x 70W/Ch (All channels driven, 8Ω)
|
|
TOTAL HARMONIC DISTORTION (THD)
|
(20Hz–20kHz, 8Ω) <0.03%
|
|
FREQUENCY RESPONSE
|
10Hz - 100kHz ±1dB
|
|
S/N RATIO (IHF "A" Weighted)
|
115dB
|
|
GAIN
|
26dB
|
